Clip 2 121 00 - 2 126 00
Clip 2 121 00 - 2 126 00

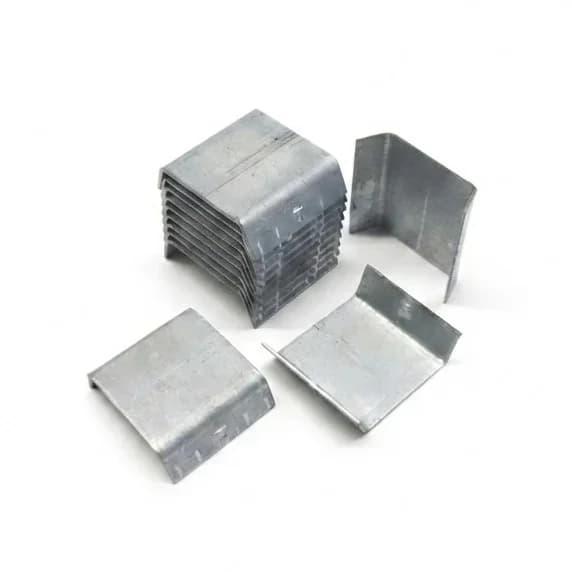

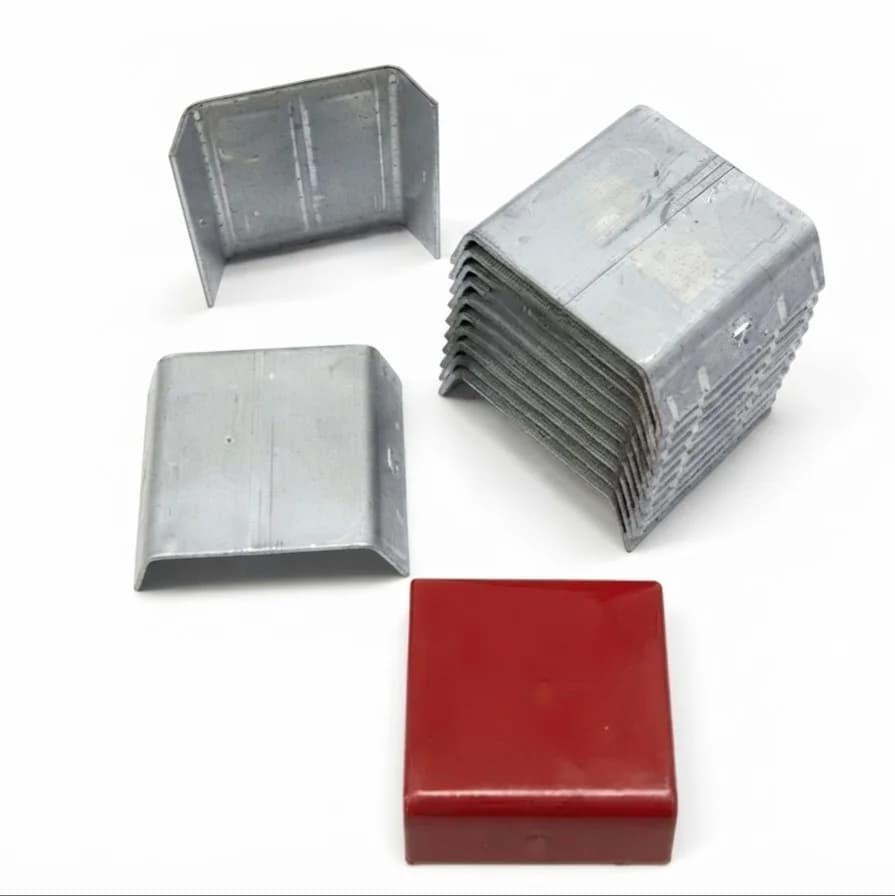

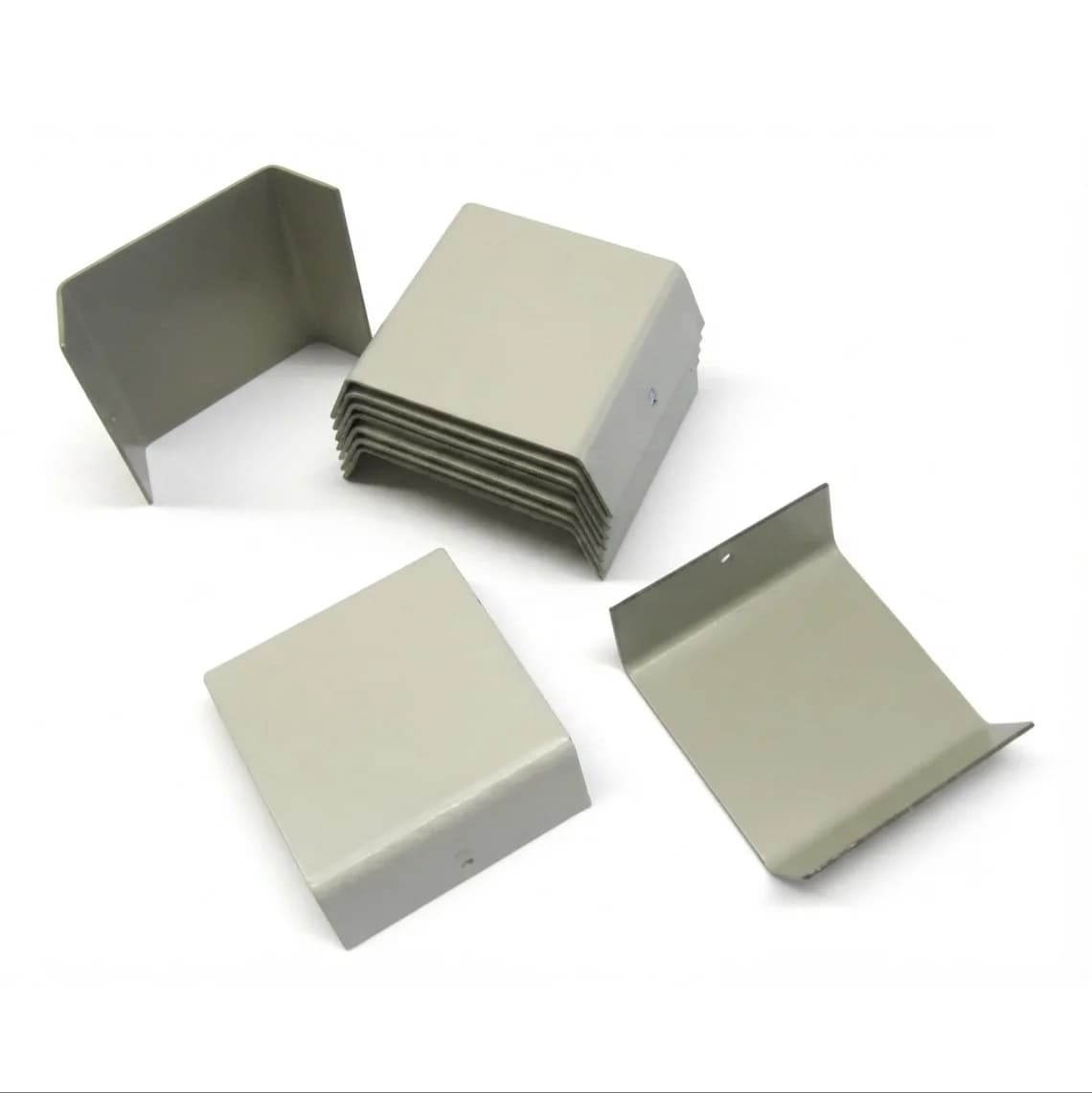

Binding clips type 2 121 00 - 2 126 00 are used for automatic strapping of bundles with steel strapping of widths 16, 19, 20, 25 and 32 mm. Clips are stacked in blocks of 50 pieces. Clips can be supplied zinc-plated or painted.
Interested in this product? Contact us for a custom quote.
Technical parameters
| order number | 2 121 00 | 2 123 00 | 2 124 00 | 2 125 00 | 2 126 00 | |
|---|---|---|---|---|---|---|
| width of buckle | 17,9mm | 22,9mm | 34mm | 34,7mm | 27,5mm | — |
| length of buckle | 19mm | 25mm | 38mm | 50mm | 50mm | — |
| material thickness | 0,63mm | 0,80mm | 0,80mm | 1,00mm | 1,00mm | — |
| type and size of tape | tape 16mm | tape 19-20mm | tape 32mm | tape 32mm | tape 25mm | — |
| type of strapping machine | automatic | automatic | automatic | automatic | automatic | automatic |
| bond strength | 6000 N | 8000 N | 10000 N | 13000 N | 12000 N | — |
| packing weight carton | 2500pcs = 7,5kg | 2500pcs = 15,35kg | 1400pcs = 20,60kg | 750pcs = 18,75kg | 750pcs = 15,20kg | — |
| packing weight pallet | 96kart. = 720kg | 96 times. = 1474kg | 64 times. = 1318kg | 80kart. = 1500kg | 80kart. = 1216kg | — |
| MARS crate packing weight | 60000pcs = 882kg | 35000pcs = 875kg | 40000pcs = 800kg | — | — | — |
Rozměry a varianty
| objednací číslo | šířka spony | délka spony | tloušťka materiálu | druh a rozměr pásky | typ páskovače | pevnost spoje | hmotnost balení karton | hmotnost balení paleta | hmotnost balení bedna MARS |
|---|---|---|---|---|---|---|---|---|---|
| 2 121 00 | 17,9mm | 19mm | 0,63mm | oc. páska 16mm | automat | 6000 N | 2500ks = 7,5kg | 96kart. = 720kg | |
| 2 123 00 | 22,9mm | 25mm | 0,80mm | oc. páska 19-20mm | automat | 8000 N | 2500ks = 15,35kg | 96kart. = 1474kg | |
| 2 124 00 | 34mm | 38mm | 0,80mm | oc. páska 32mm | automat | 10000 N | 1400ks = 20,60kg | 64kart. = 1318kg | 60000ks = 882kg |
| 2 125 00 | 34,7mm | 50mm | 1,00mm | oc. páska 32mm | automat | 13000 N | 750ks = 18,75kg | 80kart. = 1500kg | 35000ks = 875kg |
| 2 126 00 | 27,5mm | 50mm | 1,00mm | oc. páska 25mm | automat | 12000 N | 750ks = 15,20kg | 80kart. = 1216kg | 40000ks = 800kg |
