Clip 2 062 00 - 2 068 00
Clip 2 062 00 - 2 068 00

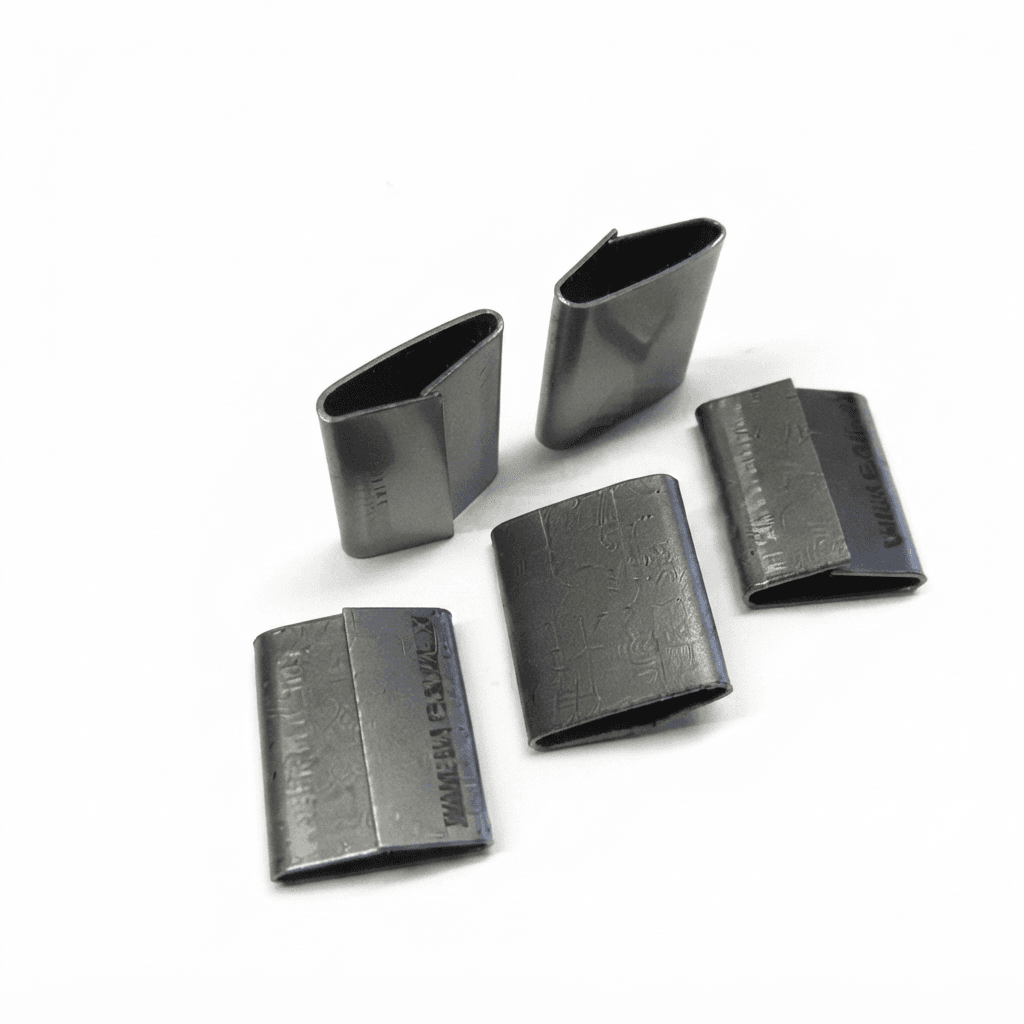

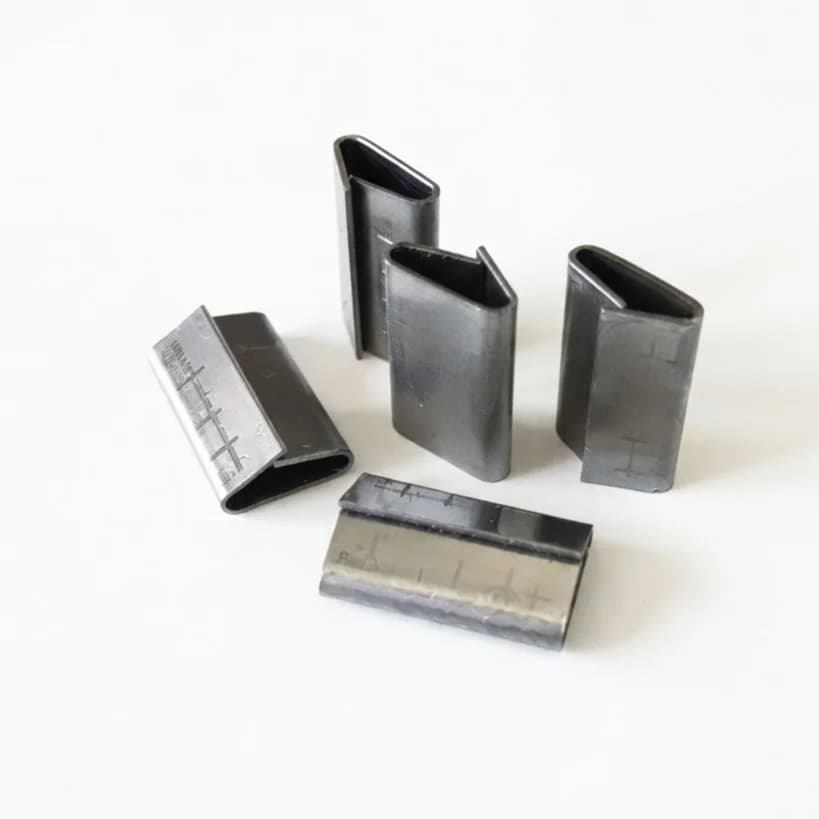

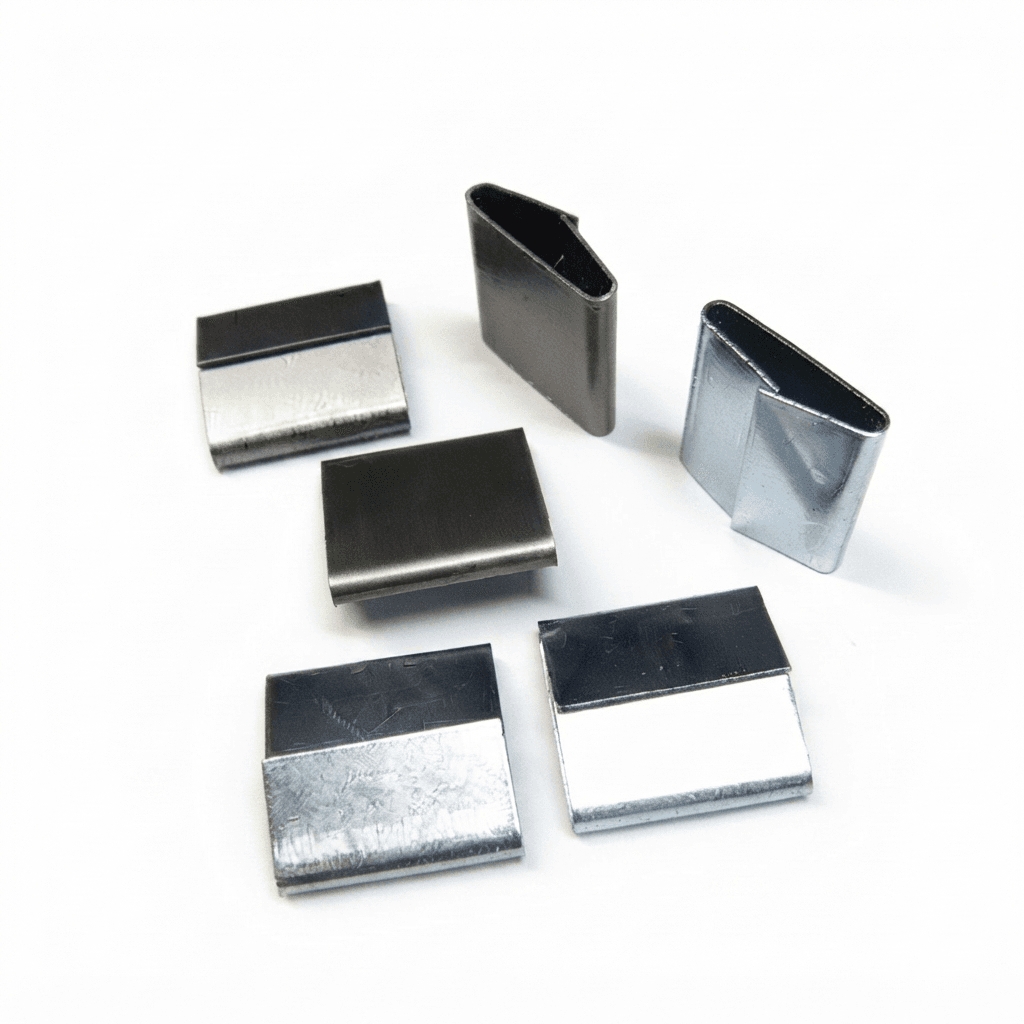

Steel clip - for manual strapping of shaped or round objects with steel strapping of widths 10, 13, 16 and 19 mm. Joint made with mechanical or pneumatic strapping tool. Clips without surface treatment, zinc-plated or painted.
Interested in this product? Contact us for a custom quote.
Technical parameters

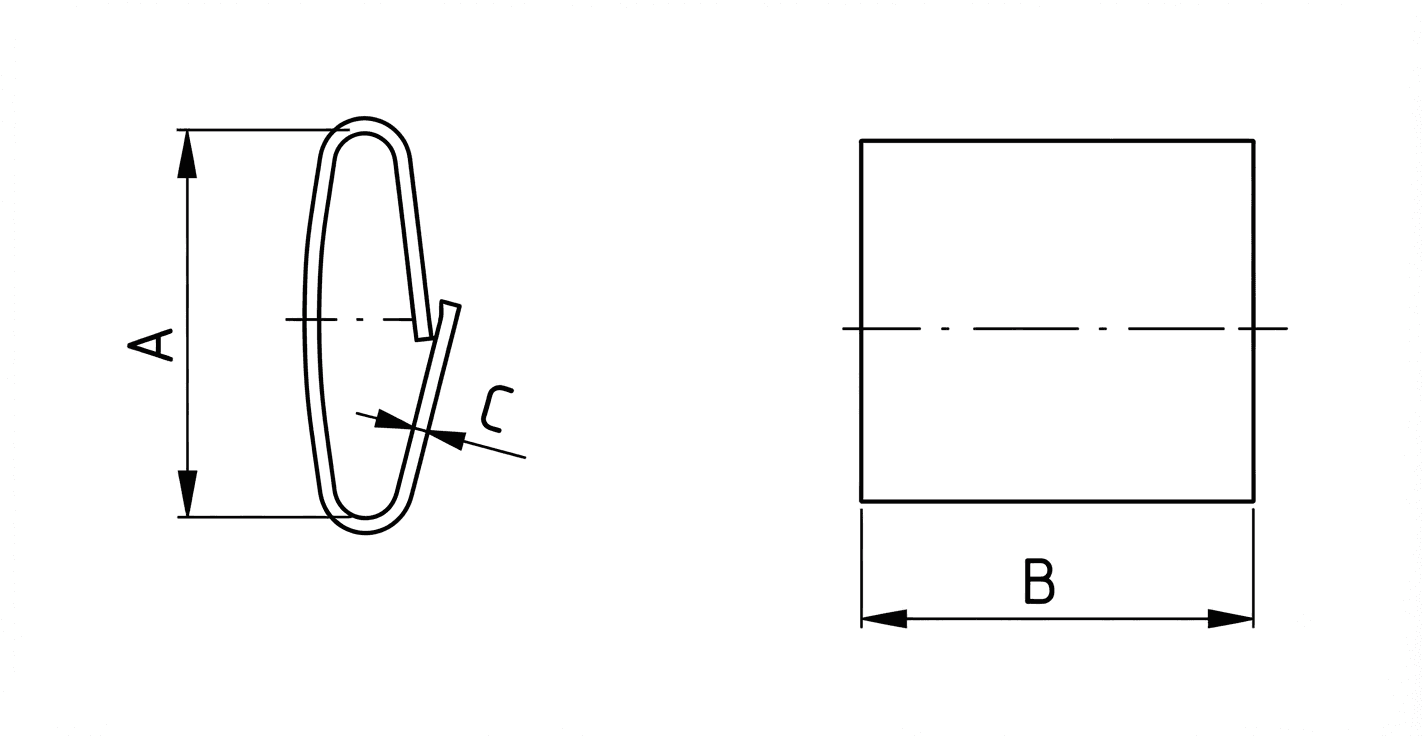

| order number | 2 062 00 | 2 063 00 | 2 064 00 | 2 065 00 | 2 068 00 |
|---|---|---|---|---|---|
| width of buckle | 13,8mm | 16,8mm | 19,8mm | 16,8mm | 10,8mm |
| length of buckle | 22mm | 25mm | 25mm | 22mm | 19mm |
| material thickness | 0.6mm | 0.6mm | 0.6mm | 0.6mm | 0.6mm |
| type and size of tape | tape 13mm | tape 16mm | tape 19-20mm | tape 16mm | tape 9-10mm |
| type of strapping machine - manual | NP1+UK1 | NP1+UK1 | NP1+UK1 | NP1+UK1 | — |
| type of strapping machine - pneumatic | FP-13 / CR13 | FP-16 / CR 15 | FP-19 | FP-16 / CR 15 | AL-38 |
| packing weight carton | 2000pcs = 7,2kg | 2000pcs = 9,8kg | 2000pcs = 10,9kg | 2250pcs = 9,785kg | 6000pcs = 14kg |
| packing weight pallet | 96kart. = 692kg | 96 times. = 941kg | 96 times. = 1043kg | 96 times. = 940kg | 96 times = 1344kg |
Rozměry a varianty
| objednací číslo | šířka spony | délka spony | tloušťka materiálu | druh a rozměr pásky | typ páskovače - ruční | typ páskovače - pneumatický | hmotnost balení karton | hmotnost balení paleta |
|---|---|---|---|---|---|---|---|---|
| 2 062 00 | 13,8mm | 22mm | 0,6mm | oc. páska 13mm | NP1+UK1 | FP-13 / CR13 | 2000ks = 7,2kg | 96kart. = 692kg |
| 2 063 00 | 16,8mm | 25mm | 0,6mm | oc. páska 16mm | NP1+UK1 | FP-16 / CR 15 | 2000ks = 9,8kg | 96kart. = 941kg |
| 2 064 00 | 19,8mm | 25mm | 0,6mm | oc. páska 19-20mm | NP1+UK1 | FP-19 | 2000ks = 10,9kg | 96kart. = 1043kg |
| 2 065 00 | 16,8mm | 22mm | 0,6mm | oc. páska 16mm | NP1+UK1 | FP-16 / CR 15 | 2250ks = 9,785kg | 96kart. = 940kg |
| 2 068 00 | 10,8mm | 19mm | 0,6mm | oc. páska 9-10mm | AL-38 | 6000ks = 14kg | 96kart. = 1344kg |
Related products
Clip 2 006 00 - 2 007 00
High-strength steel clip - used for manual strapping of cartons, loose products and palletised goods with PET or PP strapping of widths 12, 15 and 16 mm.
order number:2 006 00 | 2 007 00
width of buckle:13mm | 16mm
length of buckle:30mm | 30mm
material thickness:0.80mm | 1.00mm
type and size of tape:PET (PP) width 12mm | PET (PP) 15-16mm
type of strapping machine:OR 13 / PPX-13 | OR 16 / PPX-16
packing weight carton:1600pcs = 10,5kg | 1000pcs = 7,36kg
packing weight pallet:96kart. = 1008kg | 96 times. = 707kg
Clip 2 051 00 - 2 052 00
Steel clip - for manual strapping of cartons and lighter palletised goods with PP strapping of widths 9-10 mm and 12 mm.
order number:2 051 00 | 2 052 00
width of buckle:10mm | 12mm
length of buckle:24mm | 24mm
material thickness:0.4mm | 0.4mm
type and size of tape:PP 9-10mm | PP 12mm
type of strapping machine:PP-10F | PP-12F
packing weight carton:3500pcs = 7,70kg | 2500pcs = 6,80kg
packing weight pallet:96kart. = 739kg | 96 times. = 653kg
Clip 2 092 00
Steel clip - for manual strapping of shaped or round objects with steel strapping of width 32 mm.
order number:2 092 00
width of buckle:36mm
length of buckle:48mm
material thickness:1.0mm
type and size of tape:oc. tape 32mm
type of strapping machine - manual:NP2+UK2
type of strapping machine - pneumatic:FP-32S / CR 23
packing weight carton:300pcs = 7,82kg
packing weight pallet:96kart. = 751kg
MARS crate packing weight:15000pcs = 397kg
Clip 2 070 00 - 2 085 00
Steel clip - for manual strapping of shaped or round objects with steel strapping of widths 19, 20, 25 and 32 mm.
order number:2 070 00 | 2 071 00 | 2 073 00 | 2 074 00 | 2 075 00 | 2 075 00 ULTRA | 2 082 00 | 2 085 00 | 2 085 00 ULTRA
width of buckle:20,8mm | 20,8mm | 27,4mm | 27,4mm | 33,6mm | 33,6mm | 20,8mm | 33,6mm | 33,2mm
length of buckle:40mm | 45mm | 45mm | 57mm | 45mm | 45mm | 57mm | 57mm | 57mm
material thickness:0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 1,0mm | 0,8-0,9mm | 0,8-0,9mm | 1,0mm
type and size of tape:oc. tape 19-20mm | oc. tape 19-20mm | oc. tape 25mm | oc. tape 25mm | oc. tape 32mm | oc.tape 32mm | oc. tape 19-20mm | oc. tape 32mm | oc. tape 32mm
type of strapping machine - manual:NP1+UK1 | NP1+UK1 | NP2+UK2 | NP2+UK2 | NP1+UK1 | NP2+UK2 | NP2+UK2
type of strapping machine - pneumatic:FP-19 (S) | FP-19 (S) | FP-25S | FP-25S | FP-32S / CR 26 | FP-32S / CR26 | FP-19 (S) | FP-32S / CR26 | FP-32S / CR26
packing weight carton:700pcs = 9kg | 700pcs = 9,8kg | 450pcs = 8,4kg | 300pcs =7kg | 300pcs = 6,9kg | 500pcs = 13,2kg | 500pcs = 9,2kg | 250pcs = 7,2kg | 250pcs = 8,8kg
packing weight pallet:96kart. = 864kg | 96pcs = 941kg | 96kart. = 801kg | 96pcs. = 672kg | 96pcs. = 657kg | 72kart. = 950kg | 96kart. = 878kg | 96kart. = 686kg | 96 times. = 840kg
MARS crate packing weight:20000ks = 260kg | 20000ks = 280kg | 20000ks = 373kg | 20000ks = 453kg | 15000ks = 393kg | 12000ks = 317kg | 20000ks = 368kg | 12000ks = 394kg | 12000ks = 420kg
