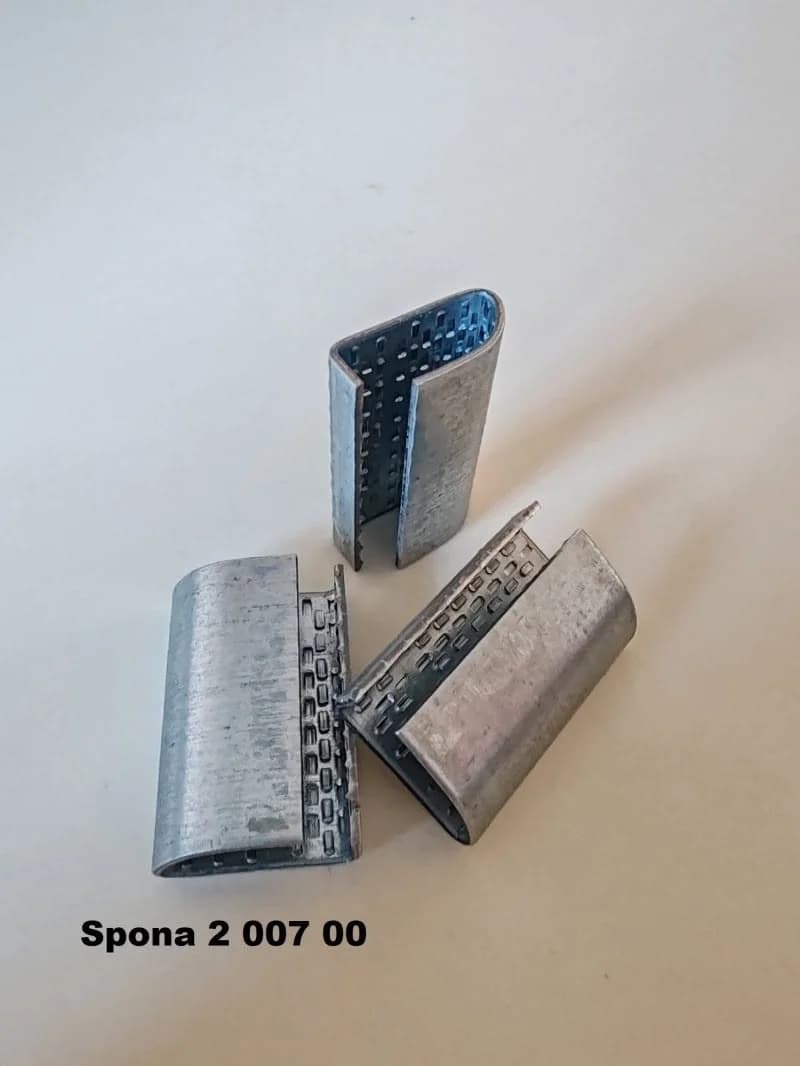

Clip 2 006 00 - 2 007 00
Clip 2 006 00 - 2 007 00
High-strength steel clip - used for manual strapping of cartons, loose products and palletised goods with PET or PP strapping of widths 12, 15 and 16 mm. The joint is made with a manual strapping tool. Clips are supplied zinc-plated.
Interested in this product? Contact us for a custom quote.
Technical parameters
| order number | 2 006 00 | 2 007 00 |
|---|---|---|
| width of buckle | 13mm | 16mm |
| length of buckle | 30mm | 30mm |
| material thickness | 0.80mm | 1.00mm |
| type and size of tape | PET (PP) width 12mm | PET (PP) 15-16mm |
| type of strapping machine | OR 13 / PPX-13 | OR 16 / PPX-16 |
| packing weight carton | 1600pcs = 10,5kg | 1000pcs = 7,36kg |
| packing weight pallet | 96kart. = 1008kg | 96 times. = 707kg |
Rozměry a varianty
| objednací číslo | šířka spony | délka spony | tloušťka materiálu | druh a rozměr pásky | typ páskovače | hmotnost balení karton | hmotnost balení paleta |
|---|---|---|---|---|---|---|---|
| 2 006 00 | 13mm | 30mm | 0,80mm | PET (PP) šíře 12mm | OR 13 / PPX-13 | 1600ks = 10,5kg | 96kart. = 1008kg |
| 2 007 00 | 16mm | 30mm | 1,00mm | PET (PP) 15-16mm | OR 16 / PPX-16 | 1000ks = 7,36kg | 96kart. = 707kg |
