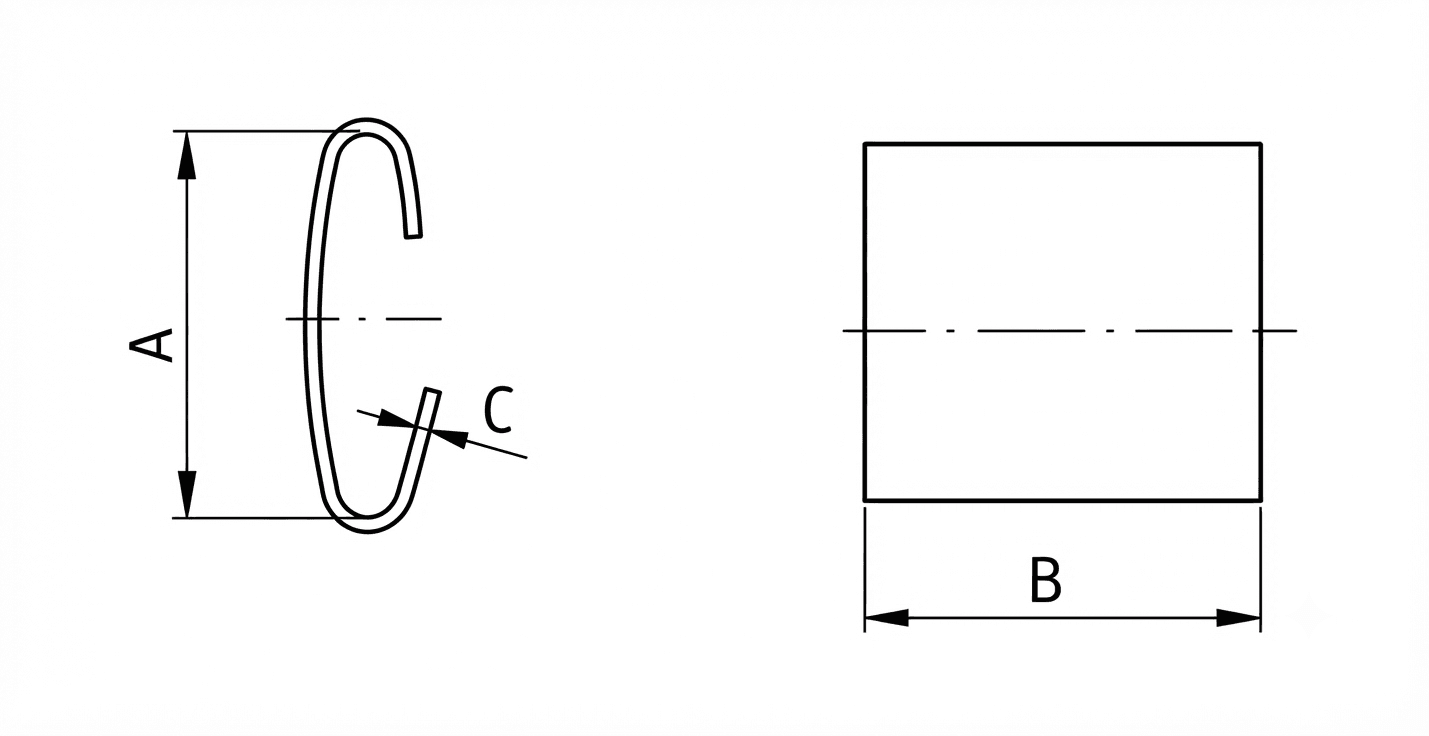

Clip 2 092 00
Clip 2 092 00
Steel clip - for manual strapping of shaped or round objects with steel strapping of width 32 mm. Joint made with mechanical or pneumatic strapping tool. Clips without surface treatment, zinc-plated or painted.
Interested in this product? Contact us for a custom quote.
Technical parameters
| Parameter | Value |
|---|---|
| order number | 2 092 00 |
| width of buckle | 36mm |
| length of buckle | 48mm |
| material thickness | 1.0mm |
| type and size of tape | oc. tape 32mm |
| type of strapping machine - manual | NP2+UK2 |
| type of strapping machine - pneumatic | FP-32S / CR 23 |
| packing weight carton | 300pcs = 7,82kg |
| packing weight pallet | 96kart. = 751kg |
| MARS crate packing weight | 15000pcs = 397kg |
Related products
Clip 2 006 00 - 2 007 00
High-strength steel clip - used for manual strapping of cartons, loose products and palletised goods with PET or PP strapping of widths 12, 15 and 16 mm.
order number:2 006 00 | 2 007 00
width of buckle:13mm | 16mm
length of buckle:30mm | 30mm
material thickness:0.80mm | 1.00mm
type and size of tape:PET (PP) width 12mm | PET (PP) 15-16mm
type of strapping machine:OR 13 / PPX-13 | OR 16 / PPX-16
packing weight carton:1600pcs = 10,5kg | 1000pcs = 7,36kg
packing weight pallet:96kart. = 1008kg | 96 times. = 707kg
Clip 2 051 00 - 2 052 00
Steel clip - for manual strapping of cartons and lighter palletised goods with PP strapping of widths 9-10 mm and 12 mm.
order number:2 051 00 | 2 052 00
width of buckle:10mm | 12mm
length of buckle:24mm | 24mm
material thickness:0.4mm | 0.4mm
type and size of tape:PP 9-10mm | PP 12mm
type of strapping machine:PP-10F | PP-12F
packing weight carton:3500pcs = 7,70kg | 2500pcs = 6,80kg
packing weight pallet:96kart. = 739kg | 96 times. = 653kg
Clip 2 062 00 - 2 068 00
Steel clip - for manual strapping of shaped or round objects with steel strapping of widths 10, 13, 16 and 19 mm.
order number:2 062 00 | 2 063 00 | 2 064 00 | 2 065 00 | 2 068 00
width of buckle:13,8mm | 16,8mm | 19,8mm | 16,8mm | 10,8mm
length of buckle:22mm | 25mm | 25mm | 22mm | 19mm
material thickness:0.6mm | 0.6mm | 0.6mm | 0.6mm | 0.6mm
type and size of tape:tape 13mm | tape 16mm | tape 19-20mm | tape 16mm | tape 9-10mm
type of strapping machine - manual:NP1+UK1 | NP1+UK1 | NP1+UK1 | NP1+UK1
type of strapping machine - pneumatic:FP-13 / CR13 | FP-16 / CR 15 | FP-19 | FP-16 / CR 15 | AL-38
packing weight carton:2000pcs = 7,2kg | 2000pcs = 9,8kg | 2000pcs = 10,9kg | 2250pcs = 9,785kg | 6000pcs = 14kg
packing weight pallet:96kart. = 692kg | 96 times. = 941kg | 96 times. = 1043kg | 96 times. = 940kg | 96 times = 1344kg
Clip 2 070 00 - 2 085 00
Steel clip - for manual strapping of shaped or round objects with steel strapping of widths 19, 20, 25 and 32 mm.
order number:2 070 00 | 2 071 00 | 2 073 00 | 2 074 00 | 2 075 00 | 2 075 00 ULTRA | 2 082 00 | 2 085 00 | 2 085 00 ULTRA
width of buckle:20,8mm | 20,8mm | 27,4mm | 27,4mm | 33,6mm | 33,6mm | 20,8mm | 33,6mm | 33,2mm
length of buckle:40mm | 45mm | 45mm | 57mm | 45mm | 45mm | 57mm | 57mm | 57mm
material thickness:0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 1,0mm | 0,8-0,9mm | 0,8-0,9mm | 1,0mm
type and size of tape:oc. tape 19-20mm | oc. tape 19-20mm | oc. tape 25mm | oc. tape 25mm | oc. tape 32mm | oc.tape 32mm | oc. tape 19-20mm | oc. tape 32mm | oc. tape 32mm
type of strapping machine - manual:NP1+UK1 | NP1+UK1 | NP2+UK2 | NP2+UK2 | NP1+UK1 | NP2+UK2 | NP2+UK2
type of strapping machine - pneumatic:FP-19 (S) | FP-19 (S) | FP-25S | FP-25S | FP-32S / CR 26 | FP-32S / CR26 | FP-19 (S) | FP-32S / CR26 | FP-32S / CR26
packing weight carton:700pcs = 9kg | 700pcs = 9,8kg | 450pcs = 8,4kg | 300pcs =7kg | 300pcs = 6,9kg | 500pcs = 13,2kg | 500pcs = 9,2kg | 250pcs = 7,2kg | 250pcs = 8,8kg
packing weight pallet:96kart. = 864kg | 96pcs = 941kg | 96kart. = 801kg | 96pcs. = 672kg | 96pcs. = 657kg | 72kart. = 950kg | 96kart. = 878kg | 96kart. = 686kg | 96 times. = 840kg
MARS crate packing weight:20000ks = 260kg | 20000ks = 280kg | 20000ks = 373kg | 20000ks = 453kg | 15000ks = 393kg | 12000ks = 317kg | 20000ks = 368kg | 12000ks = 394kg | 12000ks = 420kg
