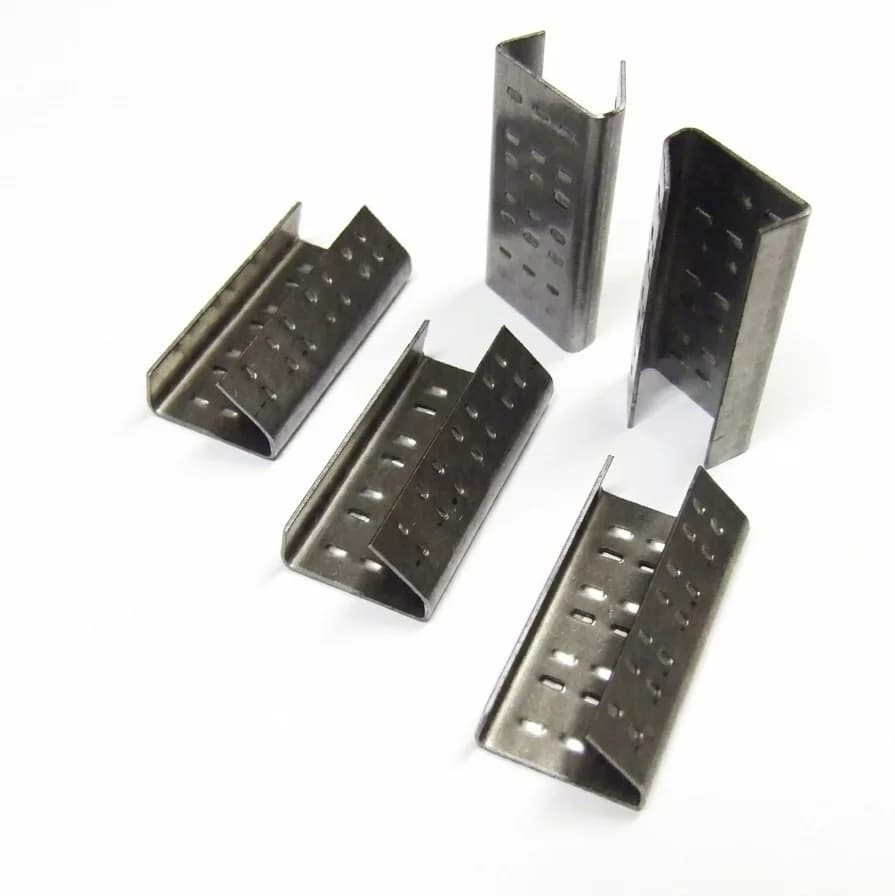

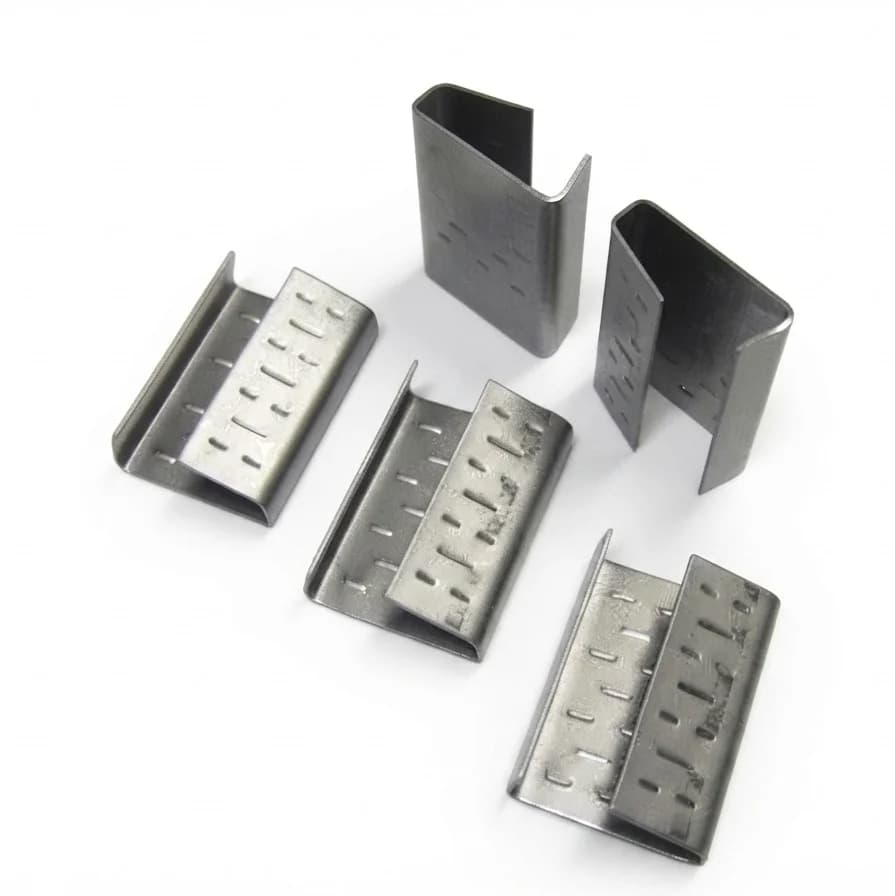

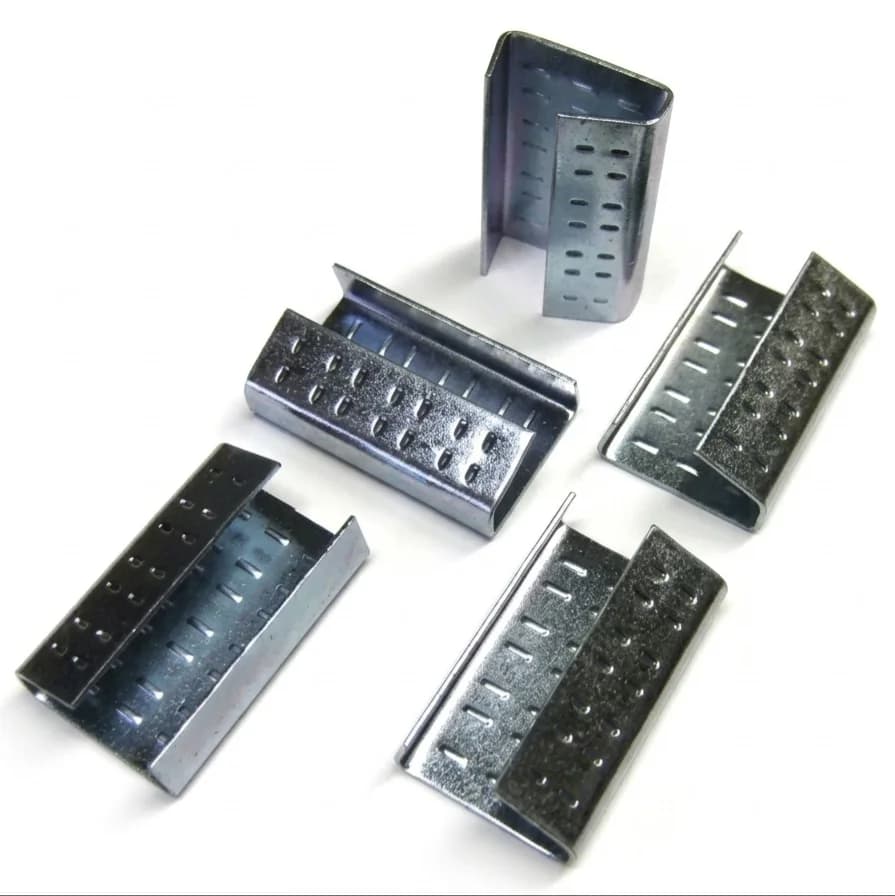

Clip 2 001 00 - 2 005 00
Clip 2 001 00 - 2 005 00
Steel clip - used for manual strapping of cartons, loose products and palletised goods with polypropylene (PP) strapping of widths 9, 10, 12, 15, 16 and 19 mm. The joint is made with a manual strapping tool.
Interested in this product? Contact us for a custom quote.
Technical parameters
| order number | 2 001 00 | 2 002 00 | 2 004 00 | 2 005 00 |
|---|---|---|---|---|
| width of buckle | 10mm | 12mm | 16mm | 19mm |
| length of buckle | 27mm | 28mm | 28mm | 28mm |
| material thickness | 0.5mm | 0.5mm | 0.5mm | 0.6mm |
| type and size of tape | PP 9-10mm | PP 12mm | PP 15-16mm | PP 19mm |
| type of strapping machine | PP-10 | PP-13 Best | PP-16 Best | PP-19 |
| packing weight carton | 1000pcs = 2,45kg | 2500pcs = 7,92kg | 1600pcs = 7,6kg | 1300pcs = 7,3kg |
| packing weight pallet | 192 cards. = 470kg | 96 times. = 761kg | 96 times. = 730kg | 96 times. = 700kg |
Rozměry a varianty
| objednací číslo | šířka spony | délka spony | tloušťka materiálu | druh a rozměr pásky | typ páskovače | hmotnost balení karton | hmotnost balení paleta |
|---|---|---|---|---|---|---|---|
| 2 001 00 | 10mm | 27mm | 0,5mm | PP 9-10mm | PP-10 | 1000ks = 2,45kg | 192kart. = 470kg |
| 2 002 00 | 12mm | 28mm | 0,5mm | PP 12mm | PP-13 Best | 2500ks = 7,92kg | 96kart. = 761kg |
| 2 004 00 | 16mm | 28mm | 0,5mm | PP 15-16mm | PP-16 Best | 1600ks = 7,6kg | 96kart. = 730kg |
| 2 005 00 | 19mm | 28mm | 0,6mm | PP 19mm | PP-19 | 1300ks = 7,3kg | 96kart. = 700kg |
