Packaging

132 products

OMC-H SERIES

OMC-H SERIES

Horizontal OMC-H wrapping machines. Modular design, high reliability and long service life.

PE Film Dispenser - OF-600

PE Film Dispenser - OF-600

Metal tabletop film dispenser for film widths up to 600 mm. Accessory for HC/HI sealing jaws. For bag production.

product designation:600 000044
max. film width:600 mm
mass:7,5 kg

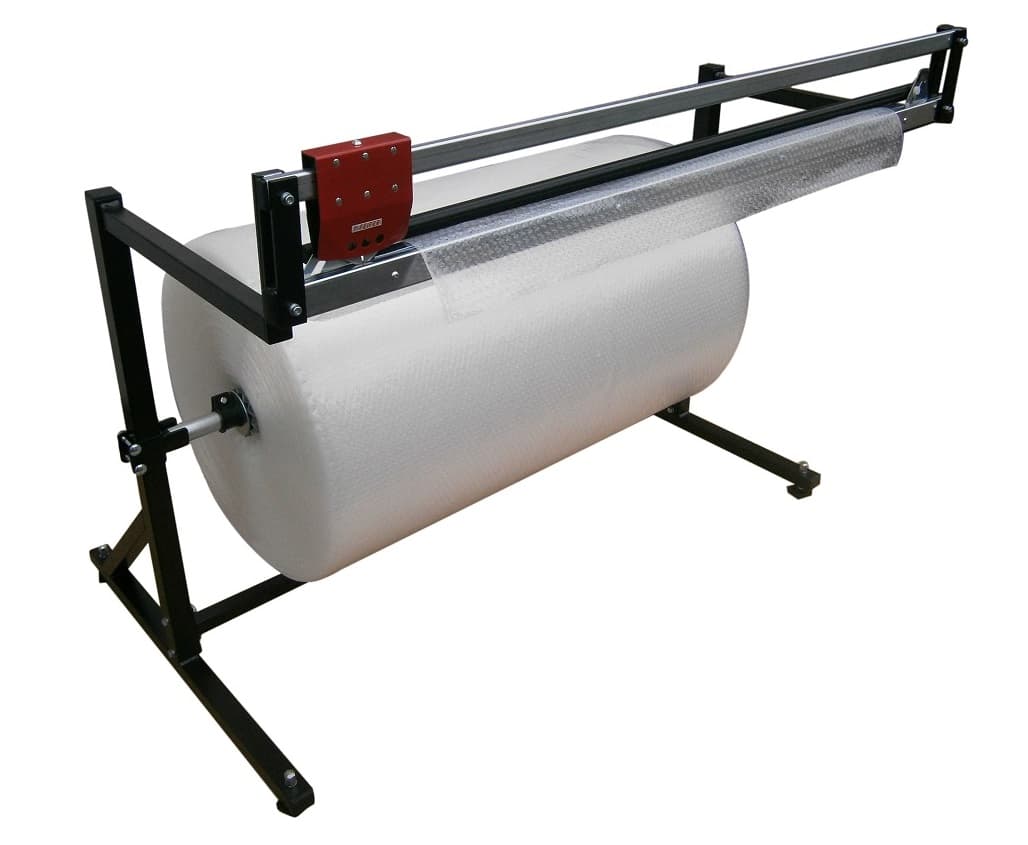

Cutting Stand RH-1250

Cutting Stand RH-1250

Horizontal cutting stand for rolled packaging materials.

product designation:600 000173
max. working width:1250 mm
max. winding diameter:1000 mm
max. roll weight:80 kg
Dimensions (l x w x h):1650 x 950 x 1050 mm
mass:28 kg
Sealing Jaw HI-300 - Width 300 mm

Sealing Jaw HI-300 - Width 300 mm

Tabletop model for sealing foil bags. Kanthal strip 2 mm. For non-series use. Seals up to 300 mm.

product designation:700 001189
installed power input:0.5 kW
jaw posture:Manual
mass:5,5 kg
max. film thickness:0.1 mm
max. weld length:300 mm
weld width:2 mm
PE Film Dispenser - OF-300

PE Film Dispenser - OF-300

Metal tabletop film dispenser for film widths up to 300 mm. Accessory for HC-300 sealing jaws. For bag production.

product designation:600 000043
max. film width:300 mm
mass:4,45 kg
Wrapping Machine EXP-26B

Wrapping Machine EXP-26B

Automatic pallet wrapping machine for low to medium throughput capacity.

product designation:700 012483
packaging material - foil:mechanical stretch
max. pallet size (l x w):1200 x 800, 1050 x 1050 mm
max. pallet height:2200 mm
max. pallet weight:1200 kg
max. turntable speed:10 rpm.
turntable height:76 mm
turntable diameter:1500 mm
supply voltage:230 V / 50 Hz
installed power input:1 kW
machine length:2300 mm
machine width:1500 mm
machine height:2346 mm
mass:335 kg
Impulse sealer US 405

Impulse sealer US 405

Multi-purpose impulse sealer for closing plastic thermolaminat packaging.

product designation:700 011151
weld length:4 mm
weld width:3 mm
max. film thickness:400 µm
welding time:0 - 5 s
FS380 LOW

FS380 LOW

FROMM turntable stretch wrapper, low-profile version.

Mast height:Standard: 2500 mm / Optional: up to 3700 mm
Rotary table:1650 mm
Max. pallet weight:1200 kg
Control panel:Standard: OP1 / OP2 with 99 programs
Trolley:Standard C4 magnetic brake / C6 and C7 single-engine preload
Bias:Standard up to 100% / Sleigh C6 150/200/250% / Sleigh C7 up to 350%
Foil thickness:C4: up to 100% / C6: 150, 200 or 250% / C7: up to 350%
Options:Cutting device / string making / top pressure / additional roll holder / remote control
Cutting Stand RH-1000

Cutting Stand RH-1000

Horizontal cutting stand for rolled packaging materials. Corrugated cardboard, paper, film. Blade cutter.

product designation:600 000184
max. working width:1000 mm
max. winding diameter:900 mm
max. roll weight:80 kg
Dimensions (l x w x h):1100 x 1010 x 1450 mm
mass:44 kg
Sealing Jaw FI

Sealing Jaw FI

Floor-standing model with foot pedal control. Seal 600 mm, width 2/5 mm. For heavy foil sacks up to 0.200 mm. Thermistor.

type:FI-600 - 600 mm wide, rack | FI-605 - 600 mm wide, rack | FI-805 - 800 mm wide, rack
product designation:700 001 197 | 700 001 195 | 700 008 714
supply voltage:220V/50Hz | 220V/50Hz | 220V/50Hz
installed power input:0,8 kW | 1,5 kW | 1,8 kW
mass:28 kg | 30 kg | 34 kg
max. film thickness:0.12 mm | 0.2 mm | 0.2 mm
max. weld length:600 mm | 600 mm | 800 mm
weld width:2 mm | 5 mm | 5 mm
Cutting Stand RH-2000

Cutting Stand RH-2000

Simple horizontal cutting stand for rolled packaging materials. For packing and dispatch centres using corrugated cardboard, wrapping paper, PE film.

product designation:600 000739
max. working width:2000 mm
max. winding diameter:1000 mm
max. roll weight:80 kg
Dimensions (l x w x h):2400 x 950 x 1050 mm
mass:34 kg
Cutting stand RHD-1250

Cutting stand RHD-1250

Cutting stand with double mounting for roll packaging materials.

product designation:600 000575
max. working width:1250 mm
max. winding diameter:900 mm
max. roll weight:80 kg
Dimensions (l x w x h):1650 x 950 x 1500 mm
mass:52 kg
Stretch Wrapping Machine EXP-108

Stretch Wrapping Machine EXP-108

3 configurable programs, optional motorized film pre-stretch, high automation, medium to large capacity.

product designation:600 002216
packaging material - foil:mechanical stretch
max. foil size (width x diameter):500 x 250 mm
max. pallet size (l x w):1500 x 1500 mm
max. packing height:2000 mm
min. pack diameter:500 mm
max. pack diameter:1800 mm
max. length of package of the item:1800 mm
max. weight of the packed item:1000 kg
foil tensioning:Yes
turntable speed:0 - 8 rpm.
turntable diameter:2140 mm
turntable height:400 mm
supply voltage:230V / 50Hz
installed power input:1.6 kW
working environment temperature:0 - 45 °C
machine dimensions (l x w x h):3778 x 2300 x 2345 mm
machine weight:approx. 800 kg
Wrapping machine EXR-301 - horizontal, semi-automatic

Wrapping machine EXR-301 - horizontal, semi-automatic

For long items (carpets, pipes, strips, profiles) in stretch film. Manual feed. Stainless steel work tables.

product designation:700 008953
supply voltage:230V/50Hz
mass:290 kg
machine length:1246 mm
machine width:1084 mm
machine height:1512 mm
outer diameter of the winding cavity:76 mm
wrapping film - material:LDPE stretch
max. film width:76, 100, 125 mm
max. film thickness:19 - 35 my
conveyor width:560 mm
conveyor height:910 mm
min. package size item size (W x H):100 x 50 mm or 100 mm diameter
max. package size item (W x H):square 305 x 305 mm, rectangle 508 x 178 mm, circle diameter 330 mm
recommended length of package. of the subject:> 500 mm
max. foil diameter:178 mm
speed of the impeller:max. 100 rpm.
Bench lever shears HS-6

Bench lever shears HS-6

Bench lever shears HS-6

PE Film Lay-Flat Tube, 750 x 0.060 mm

PE Film Lay-Flat Tube, 750 x 0.060 mm

Shrink PE film, width 750 mm, thickness 0.060 mm, lay-flat tube.

product designation:600 002046
max. working width:1250 mm
max. winding diameter:600 mm
max. roll weight:25 kg
Dimensions (l x w x h):1650 x 645 x 410 mm
mass:11 kg
Cutting Stand RH-1600

Cutting Stand RH-1600

Horizontal cutting stand for rolled packaging materials.

product designation:600 000174
max. working width:1600 mm
max. winding diameter:1000 mm
max. roll weight:80 kg
Dimensions (l x w x h):2000 x 950 x 1050 mm
mass:31 kg
Cutting Stand RV-1250

Cutting Stand RV-1250

Vertical cutting stand for rolled packaging materials.

Impulse Sealer CH-105

Impulse Sealer CH-105

Multi-purpose impulse sealer for closing plastic thermolaminant packaging.

product designation:700 001193
weld length:10 mm
weld width:5 mm
max. film thickness:400 µm
welding temperature:180 / 210 °C
mass:0,5 kg
Horizontal wrapping machine WR1400M

Horizontal wrapping machine WR1400M

Motorised horizontal wrapping machine for larger shipments in stretch film.

Gas Cylinder Trolley 10 kg - RIPACK Accessory

Gas Cylinder Trolley 10 kg - RIPACK Accessory

Trolley facilitating work with the shrink gun. For easier handling of the gas cylinder.

product designation:600 001831
carrying capacity:13 kg
OMC-CW Series

OMC-CW Series

OMC-CW wrapping machines for rectangular products requiring water and environmental protection.

OMC-R Series

OMC-R Series

OMC-R wrapping machines for packaging paper rolls, metals, plastics and composites.

Cup Sealer SK-14B

Cup Sealer SK-14B

For sealing plastic trays and cups, especially in the food industry. Double-point seal.

product designation:600 000061
Dimensions (l x w x h):845 x 700 x 1420 mm
conveyor height:900 mm
mass:160 kg
supply voltage:230V/50Hz
operating air pressure:4 - 6 bar
Sealing Jaw HI-500 - Width 500 mm

Sealing Jaw HI-500 - Width 500 mm

Tabletop model for sealing foil bags. Kanthal strip 2 mm. For non-series use. Seals up to 500 mm.

product designation:700 001190
installed power input:0.9 kW
jaw posture:Manual
mass:8,5 kg
max. film thickness:0.1 mm
max. weld length:500 mm
weld width:2 mm
FS380A

FS380A

FROMM turntable stretch wrapper. High innovation and reliability.

Mast height:Standard: 2500 mm / Optional: up to 3700 mm
Rotary table:1500 - 2400 mm / horseshoe 1650 - 1800 mm
Max. pallet weight:2000 kg
Control panel:Standard: OP1 / OP2 with 99 programs
Trolley:Standard C4 magnetic brake / C6 and C7 single-engine preload
Bias:C4: up to 100% / C6: 150, 200 or 250% / C7: up to 350%
Foil thickness:Stretch film 10-35 my / 500 mm
Options:Integration into the line / Siemens PLC / conveyor systems
Horizontal wrapping machine WR1050M

Horizontal wrapping machine WR1050M

Motorised horizontal wrapping machine for wrapping shipments in stretch film.

Wrapping machine EXP-H2600 RONDO

Wrapping machine EXP-H2600 RONDO

Horizontal wrapping machine for large items (doors, windows, panels). Motorised input and output conveyor 3 m.

product designation:700 008459
supply voltage:400V/50Hz
installed power input:6 kW
wrapping film - material:LDPE stretch
max. film width:500 mm
max. film thickness:30 My
conveyor speed:4 m/min.
width of motor conveyor:1250 mm
conveyor height:900 mm
diameter of the orbital wreath:2600 mm
max. speed of the impeller:16 rpm
min. package size item size (W x H):60 x 1000 mm
max. package size item (W x H):1250 x 1000 mm
recommended length of package. of the subject:2500 - 13000 mm
machine width:3200 mm
machine height:3400 mm
Wrapping machine EXR-201 - horizontal, semi-automatic with film cutting and welding

Wrapping machine EXR-201 - horizontal, semi-automatic with film cutting and welding

For long items in stretch film. With film cutting and welding. Stainless steel conveyors.

product designation:700 009941
supply voltage:230V/50Hz
installed power input:6 kW
mass:290 kg
machine length:1163 mm
machine width:1084 mm
machine height:1512 mm
operating air pressure:6 - 7 bar
outer diameter of the winding cavity:76 mm
wrapping film - material:LDPE stretch
max. film width:76, 100, 125 mm
max. film thickness:19 - 35 my
conveyor width:560 mm
conveyor height:910 mm
min. package size item size (W x H):100 x 50 mm or 100 mm diameter
max. package size item (W x H):square 305 x 305 mm, rectangle 508 x 178 mm, circle diameter 330 mm
recommended length of package. of the subject:> 500 mm
max. foil diameter:178 mm
speed of the impeller:max. 100 rpm.
Foam U-Profile U4, Inner Width 45 mm, Length 2000 mm

Foam U-Profile U4, Inner Width 45 mm, Length 2000 mm

Protective U-profile for edges of flat objects. Inner width 45 mm.
