The BP-600V packaging counters are designed for packaging of industrial and consumer goods, printed materials, textile products and foodstuffs in heat shrinkable films. They can only be used in combination with a shrink tunnel (e.g. HR-Holiterm). These packaging counters are suitable for plants with a small packaging capacity (4 bales/min.). Simple machine operation : the operator unwinds the film from the unwrapper and pulls it onto the wrapping counter. He then places the item to be packed on the prepared film and slides the free end of the film under the welding jaw. Pressing the welding jaw, he then welds the foil around the wrapped object and cuts it off. At the same time, the excess foil is welded to the foil being unwound from the unwrapper. The main advantages of this wrapping machine are: low purchase and operating costs adjustable welding time depending on the thickness of the film low maintenance requirements

Interested in this product? Contact us for a custom quote.

Technical parameters

ParameterValue
product designation600 000078
supply voltage230V/50Hz
installed power input0.8 kW
mass80 kg
machine length1360 mm
machine width830 mm
packaging material - foilPE LDPE
max. film width600 mm
max. film thickness75 µm
max. width of the packed item400 mm
max. power pack. machines4 pts/min.
working table height890 - 990 mm

Related products

Packing Table BP-800V

Packing Table BP-800V

For industrial and consumer goods, printed materials, textiles and food in shrink film. With shrink tunnel.

product designation:600 000056
supply voltage:230V/50Hz
installed power input:0.6 kW
mass:90 kg
machine length:1360 mm
machine width:1030 mm
packaging material - foil:PE LDPE
max. film width:800 mm
max. width of the packed item:550 mm
max. power pack. machines:3-4 ball/min.
max. film thickness:65 µm
working table height:890-990 mm

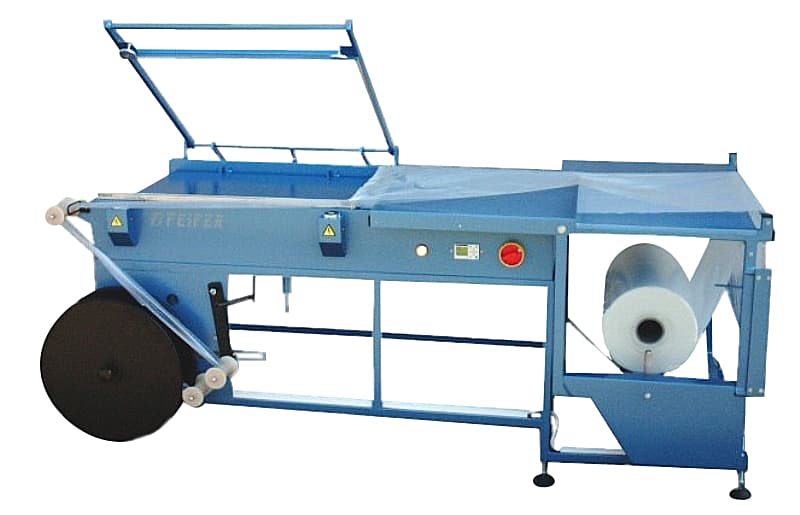

L-Bar Sealer SU-7055

L-Bar Sealer SU-7055

Packaging machine for wrapping goods in shrink film. Used in combination with HR-Holiterm shrink tunnel.

product designation:600 000045
packaging material - foil:PE PVC PP POF
Implementation:half-sleeve
max. film thickness:200 µm
jaw dimensions:700 x 550 mm
max. packing height:200 mm
installed power input:1.6 kW
average energy consumption:0.4 kW/hr
max. foil size (width x diameter):750 x 300 mm
Dimensions (l x w x h):1980 x 1195 x 1100 mm
supply voltage:230V/50Hz
L-Bar Sealers Series SU and Chamber Packaging Machines APH

L-Bar Sealers Series SU and Chamber Packaging Machines APH

Packaging machines for wrapping goods in shrink film. L-bar sealers SU for industrial use, chamber sealers APH for consumer goods.

type:SU-2535 | SU-5050 | SU-6040 | SU-7055 | SU-9080 | APH-346 | APH-455 | APH-680
length (mm):1030 | 1580 | 1780 | 1980 | 2260 | 1120 | 1320 | 1575
width (mm):1000 | 1155 | 1155 | 1195 | 1455 | 660 | 820 | 1020
height (mm):1100 | 1100 | 1100 | 1100 | 1100 | 1190 | 1190 | 1190
Machine weight (kg):60 | 92 | 94 | 98 | 140 | 120 | 100 | 150
foils - material:PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF
type of foil:half-armed | half-armed | half-armed | half-armed | half-armed | half-armed | half-armed | half-armed | half-armed
max. film thickness (my):80 | 80 | 80 | 200 | 200 | 35 | 35 | 35
length of cross jaw (mm):350 | 500 | 400 | 550 | 800 | 320 | 420 | 620
length of longitudinal jaw (mm):250 | 500 | 600 | 700 | 900 | 460 | 550 | 800
max. height of package. item (mm):150 | 200 | 200 | 200 | 200 | 120 | 250 | 250
supply voltage (V):230 | 230 | 230 | 230 | 230 | 230 | 230 | 400
Installed power (kW):1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 3,2 | 3,8 | 5,3
average power input (kW/h):0,4 | 0,4 | 0,4 | 0,4 | 0,4 | 1,5 | 1,8 | 2,7

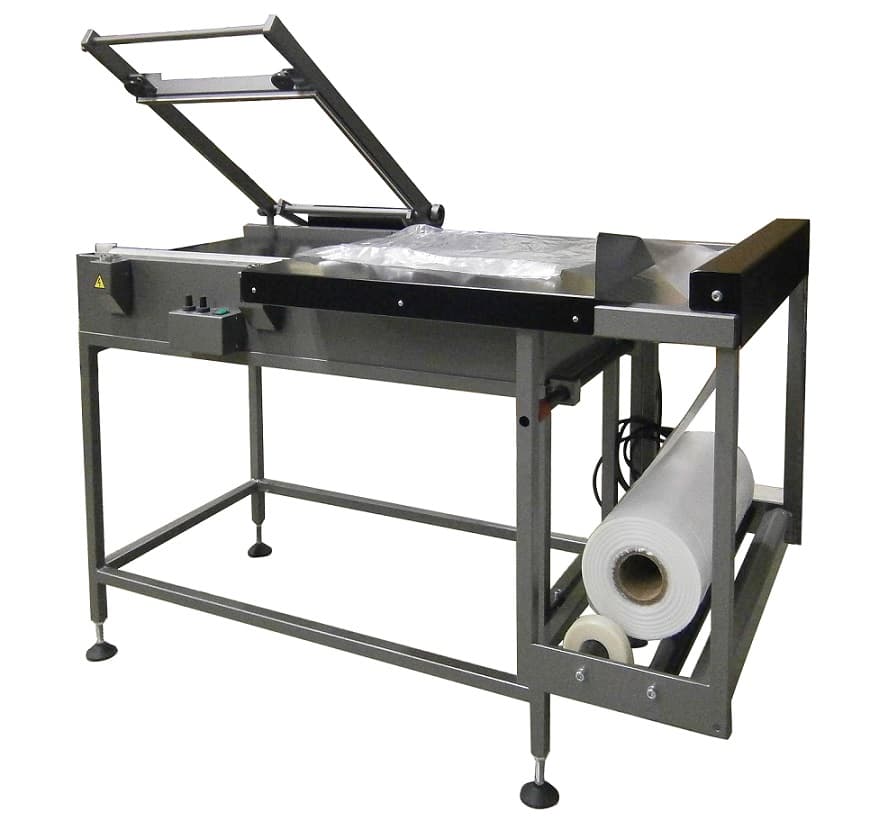

L-Bar Sealer SU-2535

L-Bar Sealer SU-2535

Packaging machine for wrapping goods in shrink film. Used in combination with HR-Holiterm shrink tunnel.

product designation:600 000046
packaging material - foil:PE PVC PP POF
Implementation:half-sleeve
max. film thickness:80 µm
jaw dimensions:250 x 350 mm
max. packing height:150 mm
installed power input:1.6 kW
average energy consumption:0.4 kW/hr
max. foil size (width x diameter):500 x 250 mm
Dimensions (l x w x h):1030 x 1000 x 1100 mm
supply voltage:230V/50Hz
