Svařování folie

29 products

L-Bar Sealer SU-7055

L-Bar Sealer SU-7055

Packaging machine for wrapping goods in shrink film. Used in combination with HR-Holiterm shrink tunnel.

product designation:600 000045
packaging material - foil:PE PVC PP POF
Implementation:half-sleeve
max. film thickness:200 µm
jaw dimensions:700 x 550 mm
max. packing height:200 mm
installed power input:1.6 kW
average energy consumption:0.4 kW/hr
max. foil size (width x diameter):750 x 300 mm
Dimensions (l x w x h):1980 x 1195 x 1100 mm
supply voltage:230V/50Hz
Sealing Jaw HC

Sealing Jaw HC

Tabletop model with trimming knife for bag production and sealing. Seal 300/400 mm. Kanthal 2 mm.

type:HC-300 - width 300 mm, built-in knife | HC-400 - width 400 mm, built-in knife | HC-500 - width 500 mm, built-in knife
product designation:700 001 192 | 700 001 199 | 700 009 640
installed power input:0,5 kW | 0,75 kW | 0,9 kW
jaw posture:manual | manual | manual
mass:5.4 kg | 7.3 kg | 8.0 kg
max. film thickness:0.12 mm | 0.12 mm | 0.12 mm
max. weld length:300 mm | 400 mm | 500 mm
weld width:2 mm | 2 mm | 2 mm
built-in knife:yes | yes | yes
Packing Table BP-600V

Packing Table BP-600V

For industrial and consumer goods in shrink film. With shrink tunnel.

product designation:600 000078
supply voltage:230V/50Hz
installed power input:0.8 kW
mass:80 kg
machine length:1360 mm
machine width:830 mm
packaging material - foil:PE LDPE
max. film width:600 mm
max. film thickness:75 µm
max. width of the packed item:400 mm
max. power pack. machines:4 pts/min.
working table height:890 - 990 mm
Sealing Jaw HI-300 - Width 300 mm

Sealing Jaw HI-300 - Width 300 mm

Tabletop model for sealing foil bags. Kanthal strip 2 mm. For non-series use. Seals up to 300 mm.

product designation:700 001189
installed power input:0.5 kW
jaw posture:Manual
mass:5,5 kg
max. film thickness:0.1 mm
max. weld length:300 mm
weld width:2 mm
Bag Sealer BS-881

Bag Sealer BS-881

For short and wide bags. Electronic speed and temperature control, code embossing, stainless steel casing.

product designation:700 001634
supply voltage:230V/50Hz
installed power input:0.75 kW
recommended material for welding:PE PP PS PVC paper alu with injection moulding
weld width:10 mm
Welding speed control (conveyor speed):1 - 12 m/min.
Welding temperature control:30 - 300 °C
machine length:950 mm
machine width:400 mm
machine height:430 mm
mass:45 kg
conveyor length:950 mm
conveyor width:180 mm
carrying capacity:3 kg

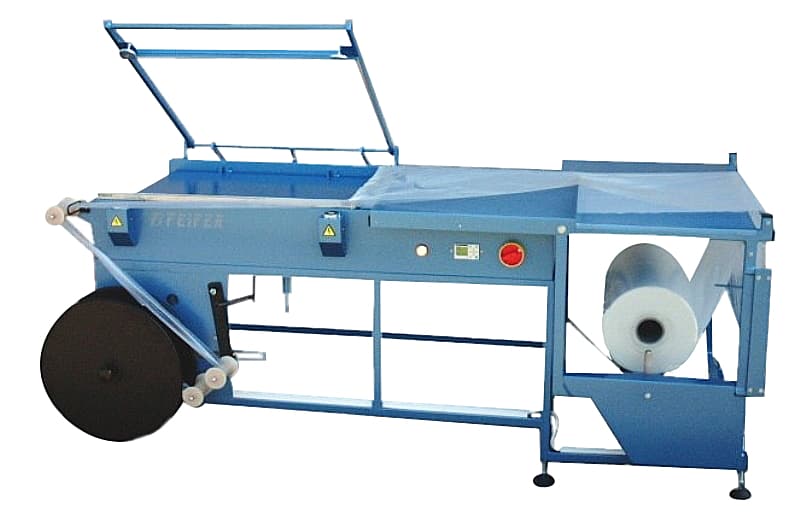

L-Bar Sealers Series SU and Chamber Packaging Machines APH

L-Bar Sealers Series SU and Chamber Packaging Machines APH

Packaging machines for wrapping goods in shrink film. L-bar sealers SU for industrial use, chamber sealers APH for consumer goods.

type:SU-2535 | SU-5050 | SU-6040 | SU-7055 | SU-9080 | APH-346 | APH-455 | APH-680
length (mm):1030 | 1580 | 1780 | 1980 | 2260 | 1120 | 1320 | 1575
width (mm):1000 | 1155 | 1155 | 1195 | 1455 | 660 | 820 | 1020
height (mm):1100 | 1100 | 1100 | 1100 | 1100 | 1190 | 1190 | 1190
Machine weight (kg):60 | 92 | 94 | 98 | 140 | 120 | 100 | 150
foils - material:PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF | PE,PVC,PP,POF
type of foil:half-armed | half-armed | half-armed | half-armed | half-armed | half-armed | half-armed | half-armed | half-armed
max. film thickness (my):80 | 80 | 80 | 200 | 200 | 35 | 35 | 35
length of cross jaw (mm):350 | 500 | 400 | 550 | 800 | 320 | 420 | 620
length of longitudinal jaw (mm):250 | 500 | 600 | 700 | 900 | 460 | 550 | 800
max. height of package. item (mm):150 | 200 | 200 | 200 | 200 | 120 | 250 | 250
supply voltage (V):230 | 230 | 230 | 230 | 230 | 230 | 230 | 400
Installed power (kW):1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 3,2 | 3,8 | 5,3
average power input (kW/h):0,4 | 0,4 | 0,4 | 0,4 | 0,4 | 1,5 | 1,8 | 2,7
Impulse sealer US 405

Impulse sealer US 405

Multi-purpose impulse sealer for closing plastic thermolaminat packaging.

product designation:700 011151
weld length:4 mm
weld width:3 mm
max. film thickness:400 µm
welding time:0 - 5 s
Extendable Roller Conveyor DH, 3 Sections, Plastic Rollers, 1.36–4.40 m

Extendable Roller Conveyor DH, 3 Sections, Plastic Rollers, 1.36–4.40 m

Extendable DH roller conveyor, 3 sections, plastic rollers, length range 1.36–4.40 m, for cartons.

product designation:700 021389
supply voltage:230V/50Hz
installed power input:0.65 kW
recommended material for welding:PE PP PS PVC paper alu with injection moulding
weld width:10 mm
Welding speed control (conveyor speed):1 - 12 m/min.
Welding temperature control:30 - 300 °C
machine length:880 mm
machine width:420 mm
machine height:550 mm
mass:37 kg
conveyor length:850 mm
conveyor width:160 mm
carrying capacity:3 kg
Packing Table BP-800V

Packing Table BP-800V

For industrial and consumer goods, printed materials, textiles and food in shrink film. With shrink tunnel.

product designation:600 000056
supply voltage:230V/50Hz
installed power input:0.6 kW
mass:90 kg
machine length:1360 mm
machine width:1030 mm
packaging material - foil:PE LDPE
max. film width:800 mm
max. width of the packed item:550 mm
max. power pack. machines:3-4 ball/min.
max. film thickness:65 µm
working table height:890-990 mm

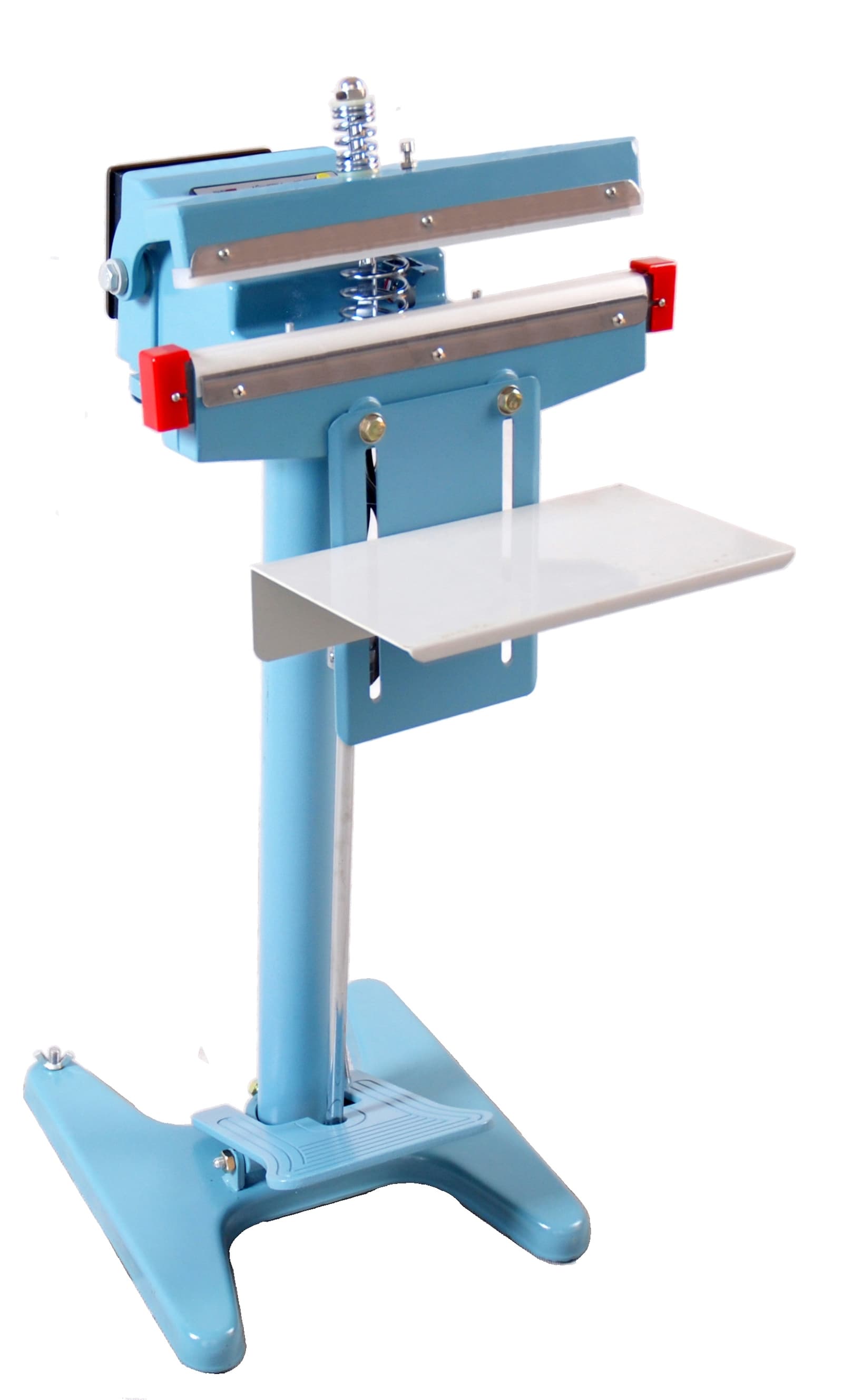

Sealing Jaw FI

Sealing Jaw FI

Floor-standing model with foot pedal control. Seal 600 mm, width 2/5 mm. For heavy foil sacks up to 0.200 mm. Thermistor.

type:FI-600 - 600 mm wide, rack | FI-605 - 600 mm wide, rack | FI-805 - 800 mm wide, rack
product designation:700 001 197 | 700 001 195 | 700 008 714
supply voltage:220V/50Hz | 220V/50Hz | 220V/50Hz
installed power input:0,8 kW | 1,5 kW | 1,8 kW
mass:28 kg | 30 kg | 34 kg
max. film thickness:0.12 mm | 0.2 mm | 0.2 mm
max. weld length:600 mm | 600 mm | 800 mm
weld width:2 mm | 5 mm | 5 mm
Sealing Jaw HI-200 - Width 200 mm

Sealing Jaw HI-200 - Width 200 mm

Tabletop model for sealing foil bags. Kanthal strip 2 mm. For non-series use. Seals up to 200 mm.

product designation:700 001188
installed power input:0,35 kW
jaw posture:Manual
mass:4,0 kg
max. film thickness:0.1 mm
max. weld length:200 mm
weld width:2 mm

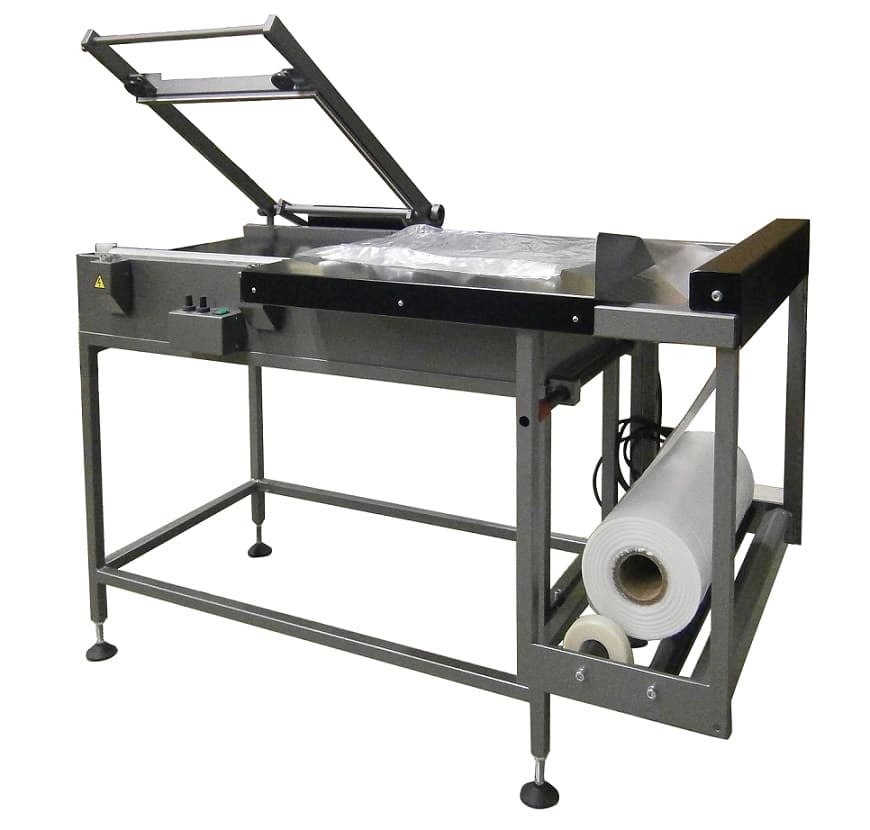

L-Bar Sealer SU-6040

L-Bar Sealer SU-6040

Packaging machine for wrapping goods in shrink film.

product designation:600 000202
packaging material - foil:PE PVC PP POF
Implementation:half-sleeve
max. film thickness:80 µm
jaw dimensions:600 x 400 mm
max. packing height:200 mm
installed power input:1.6 kW
average energy consumption:0.4 kW/hr
max. foil size (width x diameter):600 x 300 mm
Dimensions (l x w x h):1780 x 1055 x 1100 mm
supply voltage:230V/50Hz

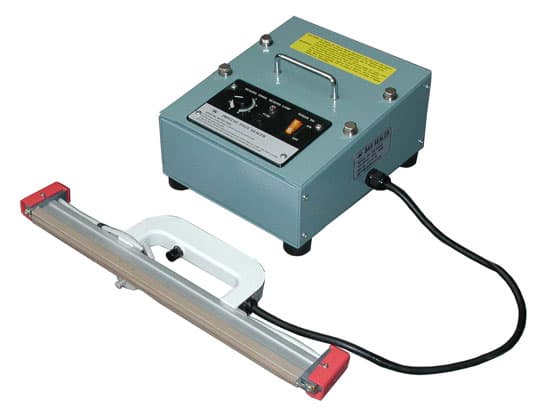

Portable Hand Welder HPW-600

Portable Hand Welder HPW-600

Professional handheld welding tool for manufacturing larger bags and protective film covers.

product designation:700 012831
installed power input:0.8 kW
supply voltage:230-240V
mass:20 kg
max. weld length:600 mm
weld width:3 mm
L-Bar Sealer SU-5050

L-Bar Sealer SU-5050

Packaging machine for wrapping goods in shrink film. Used in combination with shrink tunnel HR-Holiterm.

product designation:600 001038
packaging material - foil:PE PVC PP POF
Implementation:half-sleeve
max. film thickness:80 µm
jaw dimensions:500 x 500 mm
max. packing height:200 mm
installed power input:1.6 kW
average energy consumption:0.4 kW/hr
max. foil size (width x diameter):700 x 300 mm
Dimensions (l x w x h):1580 x 1155 x 1100 mm
supply voltage:230V/50Hz
Impulse Sealer CH-105

Impulse Sealer CH-105

Multi-purpose impulse sealer for closing plastic thermolaminant packaging.

product designation:700 001193
weld length:10 mm
weld width:5 mm
max. film thickness:400 µm
welding temperature:180 / 210 °C
mass:0,5 kg

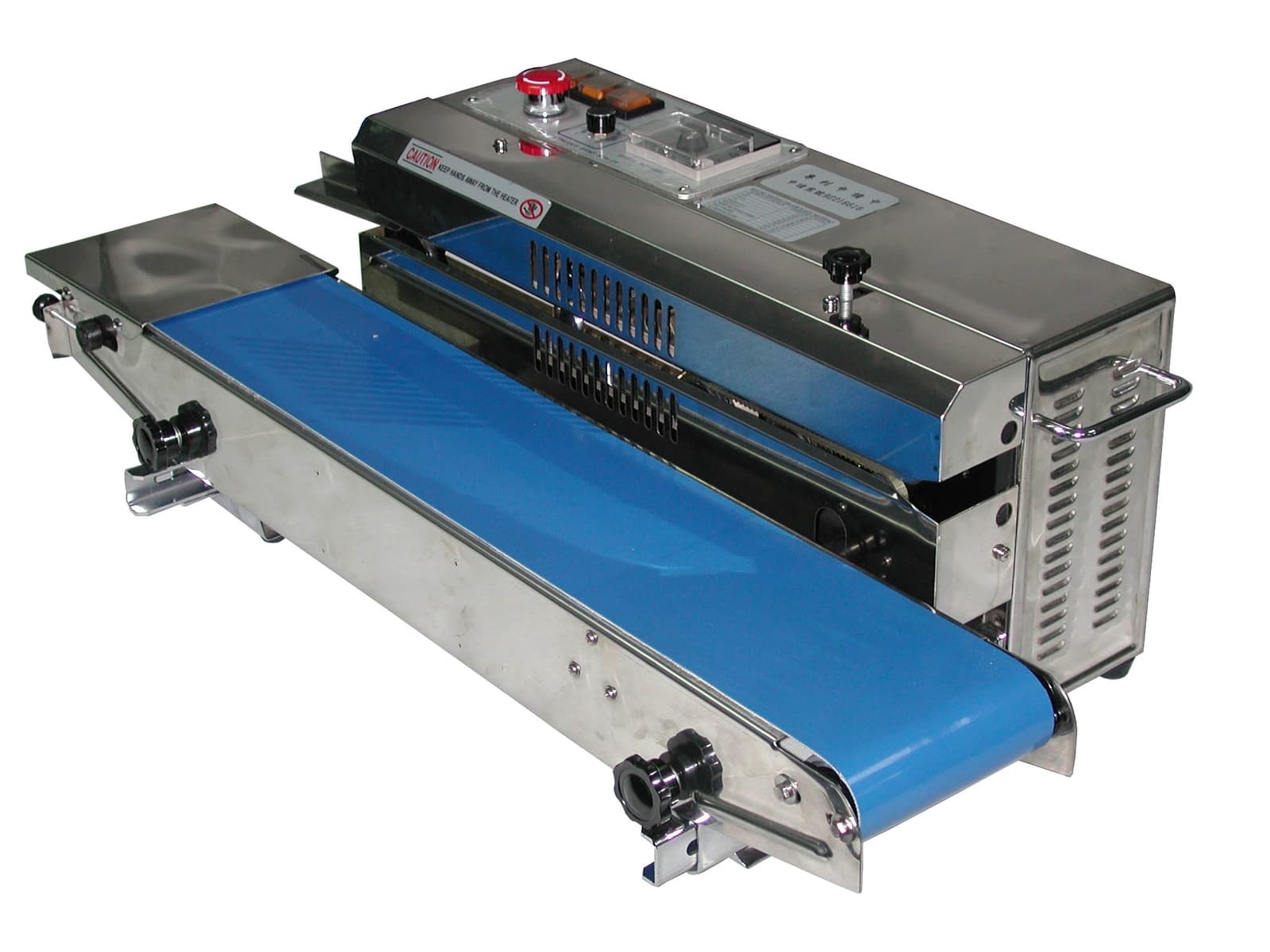

Bag Sealer BS-881 - Horizontal, Continuous

Bag Sealer BS-881 - Horizontal, Continuous

For short and wide bags. Electronic speed and temperature control, date/batch code embossing into seal, stainless steel casing.

product designation:700 001634
supply voltage:230V/50Hz
installed power input:0.55 kW
mass:35 kg
recommended material for welding:PE, PP, PS, PVC, paper and aluminium with injection moulding
max. weld length:Unlimited
weld width:10 mm
Welding speed control (conveyor speed):1 - 12 m/min.
Welding temperature control:30 - 300 degrees
Sealing Jaw SO

Sealing Jaw SO

Industrial sealing jaws with trimming knife for foil sacks. Seal 600-1400 mm, Kanthal 4 mm. Foot pedal operation.

type:SO-140F - industrial, width 1400 mm | SO-100F - industrial, width 1000 mm | SO-80F - industrial, width 800 mm | SO-60F - industrial, width 600 mm | SO-140PN - pneumatic folding | SO-100PN - industrial, width 1000 mm, pneumatic folding | SO-80PN - industrial, width 800 mm, pneumatic folding | SO-60PN - industrial, width 600 mm, pneumatic folding
product designation:600 000074 | 600 000287 | 600 000286 | 600 000073 | 600 000210 | 600 000289 | 600 000077 | 600 000288
Sealing Jaw FC

Sealing Jaw FC

Floor-standing model with foot pedal and knife. Seal 600 mm, width 2/5 mm. For heavy foil sacks up to 0.200 mm.

type:FC-600 - width 600 mm, built-in knife | FC-605 - width 600 mm, built-in knife
product designation:700 001636 | 700 007826
weld width:2 mm | 5 mm
Sealing Jaw HI-800IP - 800 mm, Including Film Unwinder

Sealing Jaw HI-800IP - 800 mm, Including Film Unwinder

Professional tabletop model. Seals up to 800 mm. Thermistor. Built-in film unwinder.

product designation:700 001198
installed power input:0.8 kW
mass:8,5 kg
max. film thickness:0.12 mm
max. weld length:800 mm
weld width:0.8 mm wire
Cup Sealer SK-14B

Cup Sealer SK-14B

For sealing plastic trays and cups, especially in the food industry. Double-point seal.

product designation:600 000061
Dimensions (l x w x h):845 x 700 x 1420 mm
conveyor height:900 mm
mass:160 kg
supply voltage:230V/50Hz
operating air pressure:4 - 6 bar
Sealing Jaw HI-500 - Width 500 mm

Sealing Jaw HI-500 - Width 500 mm

Tabletop model for sealing foil bags. Kanthal strip 2 mm. For non-series use. Seals up to 500 mm.

product designation:700 001190
installed power input:0.9 kW
jaw posture:Manual
mass:8,5 kg
max. film thickness:0.1 mm
max. weld length:500 mm
weld width:2 mm
Bag Sealer BS-882

Bag Sealer BS-882

For bulk and liquid materials. Sealing height up to 300 mm. Electronic control, date coding, stainless steel.

product designation:700 008280
supply voltage:230V/50Hz
installed power input:0.75 kW
recommended material for welding:PE PP PS PVC paper alu with injection moulding
weld width:10 mm
Welding speed control (conveyor speed):1 - 12 m/min.
Welding temperature control:30 - 300 °C
machine length:950 mm
machine width:400 mm
machine height:640 mm
mass:57 kg
conveyor length:950 mm
conveyor width:180 mm
carrying capacity:3 kg

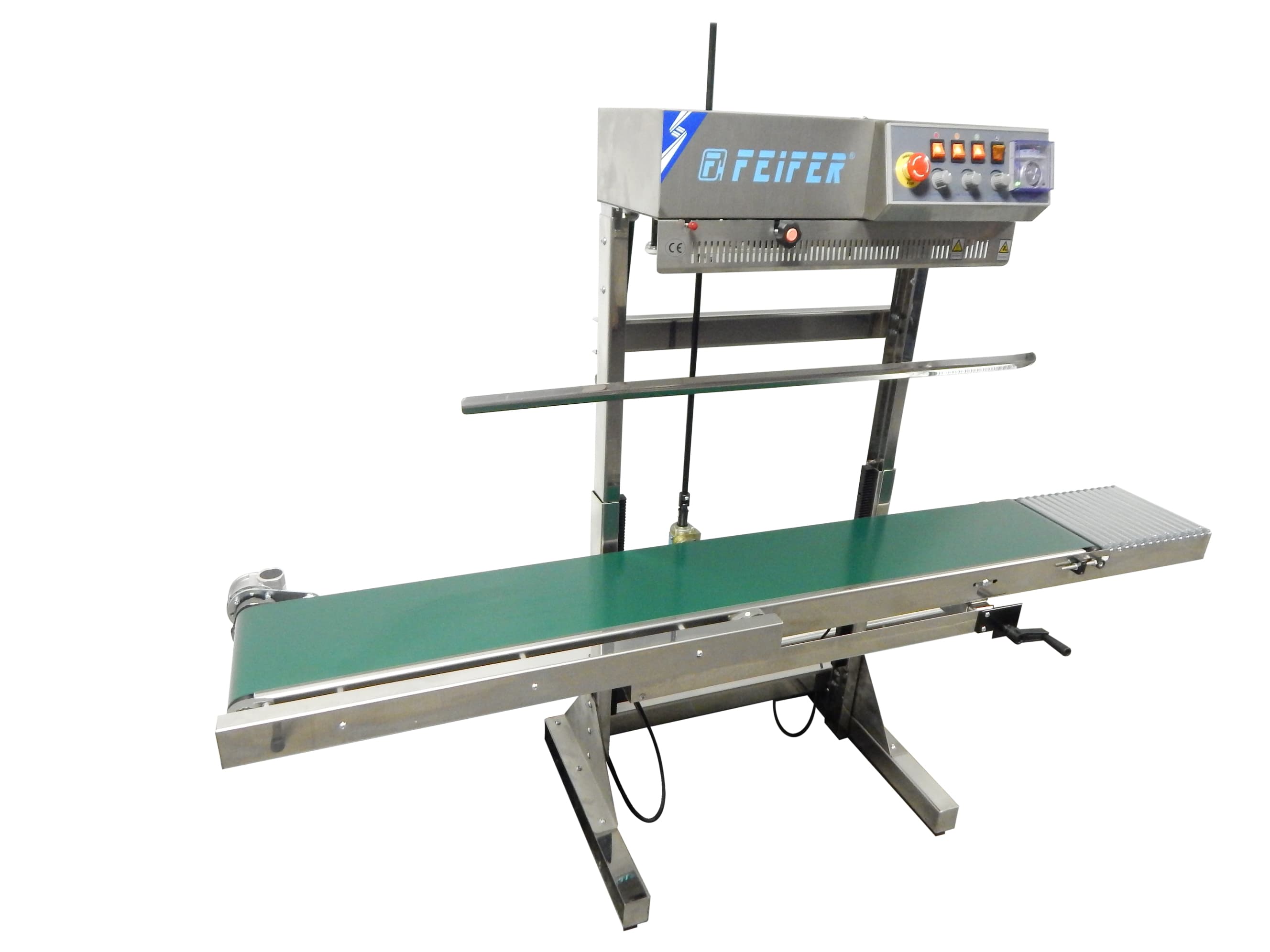

Bag Sealer BS-882 - Vertical, Continuous

Bag Sealer BS-882 - Vertical, Continuous

For bulk and liquid materials. Packaging height up to 300 mm. Electronic control, code embossing, stainless steel casing.

product designation:700 008280
supply voltage:230V/50Hz
installed power input:0.55 kW
mass:40 kg
recommended material for welding:PE, PP, PS, PVC, paper and aluminium with injection moulding
max. weld length:Unlimited
weld width:10 mm
Welding speed control (conveyor speed):1 - 12 m/min.
Welding temperature control:30 - 300 degrees
L-Bar Sealer SU-2535

L-Bar Sealer SU-2535

Packaging machine for wrapping goods in shrink film. Used in combination with HR-Holiterm shrink tunnel.

product designation:600 000046
packaging material - foil:PE PVC PP POF
Implementation:half-sleeve
max. film thickness:80 µm
jaw dimensions:250 x 350 mm
max. packing height:150 mm
installed power input:1.6 kW
average energy consumption:0.4 kW/hr
max. foil size (width x diameter):500 x 250 mm
Dimensions (l x w x h):1030 x 1000 x 1100 mm
supply voltage:230V/50Hz
Sealing Jaw SO-30H - Hand Clamp, Width 320 mm (connector)

Sealing Jaw SO-30H - Hand Clamp, Width 320 mm (connector)

Manual impulse clamps for sealing packaging films around large objects. Heated upper and lower jaw. For PE and PP films up to 0.25 mm.

product designation:600 000746
supply voltage:230V/50Hz
installed power input:0.5 kW
jaws open:50 mm
mass:1,6 + 9 kg
wrapping film - material:PE, PVC, PP, POF
max. film thickness:2 x 0.25 mm
max. weld length:300 mm
weld width:3 mm
welding time:0 - 5 sec.
foils - design:sleeve, single foil
weight of the electrical cabinet:9,0 kg
Sealing Jaw HI-600 - Width 600 mm

Sealing Jaw HI-600 - Width 600 mm

Professional tabletop model. Extra long seals up to 600/800 mm. Thermistor. Two types of heating strips.

product designation:700 001191
installed power input:0.8 kW
jaw posture:Manual
mass:8,5 kg
max. film thickness:0.15 mm
max. weld length:600 mm
weld width:2 mm
L-Bar Sealer SU-9080

L-Bar Sealer SU-9080

Packaging machine for wrapping goods in shrink film. Used in combination with HR-Holiterm shrink tunnel.

product designation:600 000048
packaging material - foil:PE PVC PP POF
Implementation:half-sleeve
max. film thickness:200 µm
jaw dimensions:900 x 800 mm
max. packing height:200 mm
installed power input:1.6 kW
average energy consumption:0.4 kW/hr
max. foil size (width x diameter):1000 x 300 mm
Dimensions (l x w x h):2260 x 1455 x 1100 mm
supply voltage:230V/50Hz
Tensioner H-50 for PES Strap

Tensioner H-50 for PES Strap

Tensioner for polyester textile strap (PES), strap width 19–50 mm.

product designation:600 001561
supply voltage:230V / 50Hz
installed power input:1 kW
recommended material for welding:PE PP PS PVC paper alu with injection moulding
weld width:10 mm
Welding speed control (conveyor speed):1 - 12 m/min.
Welding temperature control:30 - 300 °C
machine length:1911 mm
machine width:600 mm
machine height:1420 mm
mass:100 kg
conveyor length:1911 mm
conveyor width:250 mm
carrying capacity:25 kg
Bag Sealer BS-871

Bag Sealer BS-871

For short and wide bags. Electronic speed and temperature control, code embossing, stainless steel casing.

product designation:700 021367
supply voltage:230V/50Hz
installed power input:0.65 kW
recommended material for welding:PE PP PS PVC paper alu with injection moulding
weld width:10 mm
Welding speed control (conveyor speed):1 - 12 m/min.
Welding temperature control:30 - 300 °C
machine length:880 mm
machine width:420 mm
machine height:350 mm
mass:32 kg
conveyor length:850 mm
conveyor width:160 mm
carrying capacity:3 kg
Svařování folie – LIKOP s.r.o.
