Cutting Pliers for Steel Strap
Cutting Pliers for Steel Strap

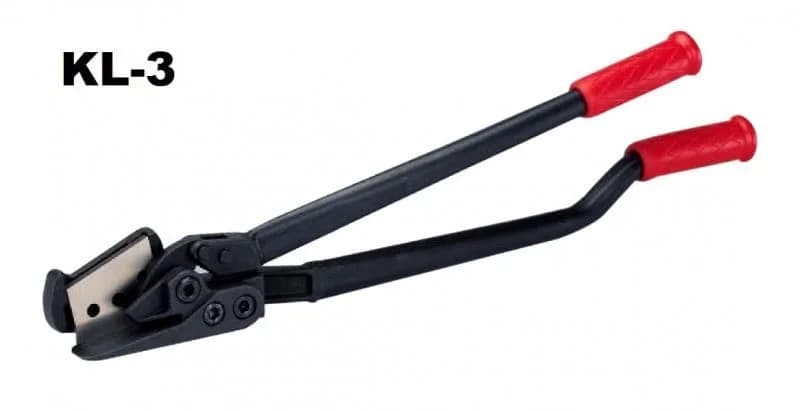

They are a suitable complement to hand-held steel strapping machines. The types we offer are equipped with a tape guide, which increases the safety of the operator and reduces the physical effort required to cut the tape. The KL-3 pliers also have an interchangeable cutting blade.
Interested in this product? Contact us for a custom quote.
Technical parameters
| type | KL-1 | KL-2 | KL-3 |
|---|---|---|---|
| Description | cutting pliers | lever cutting pliers | lever cutting pliers |
| maximum tape width | 32 mm | 50 mm | 50 mm |
| maximum tape thickness | 0.8 mm | 1.2 mm | 1.2 mm |
| size d x w x h | 310 x 45 x 60 mm | 620 x 60 x 170 mm | 800 x 70 x 180 mm |
Rozměry a varianty
| typ | popis | maximální šíře pásky | maximální tloušťka pásky | velikost d x š x v |
|---|---|---|---|---|
| KL-1 | odstřihovací kleště | 32 mm | 0,8 mm | 310 x 45 x 60 mm |
| KL-2 | pákové odstřihovací kleště | 50 mm | 1,2 mm | 620 x 60 x 170 mm |
| KL-3 | pákové odstřihovací kleště | 50 mm | 1,2 mm | 800 x 70 x 180 mm |
