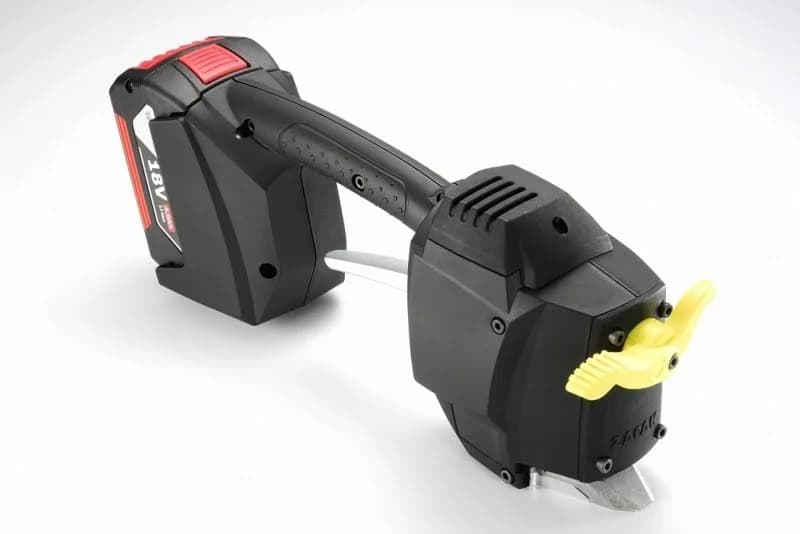

Strapping welder ZAPAK ZP-SW25A for PP and PET strap 15-25mm

Hand-held cordless tape welder suitable for welding PP or PET tapes without the use of steel clips. Tightening of the tapes can be done manually or with a manual tensioner. Its main advantages are its high welding efficiency, ergonomic design, very low weight and excellent price/performance ratio. The new unique brushless motor ensures even longer battery life and increased motor life. Suitable for mobile use without mains power (halls, courtyards,...). Battery and charger included.

Interested in this product? Contact us for a custom quote.

Technical parameters

ParameterValue
product nameZAPAK ZP-SW25A
supply voltage18 V battery
binding tape - materialPP, PET
binding tape width15 - 25 mm
binding tape thicknessmax 1.53 mm
mass1.5 kg (+ battery 0.60 kg)
welding time0.6 - 4.8 sec.
number of times / 1 battery charge500 (for PP), 300 (for PET)
battery charging time30 minutes.
number of battery charge cycles3 000
