Strapping Sets NP+UK (for steel straps 10-32 mm)
Strapping Sets NP+UK (for steel straps 10-32 mm)

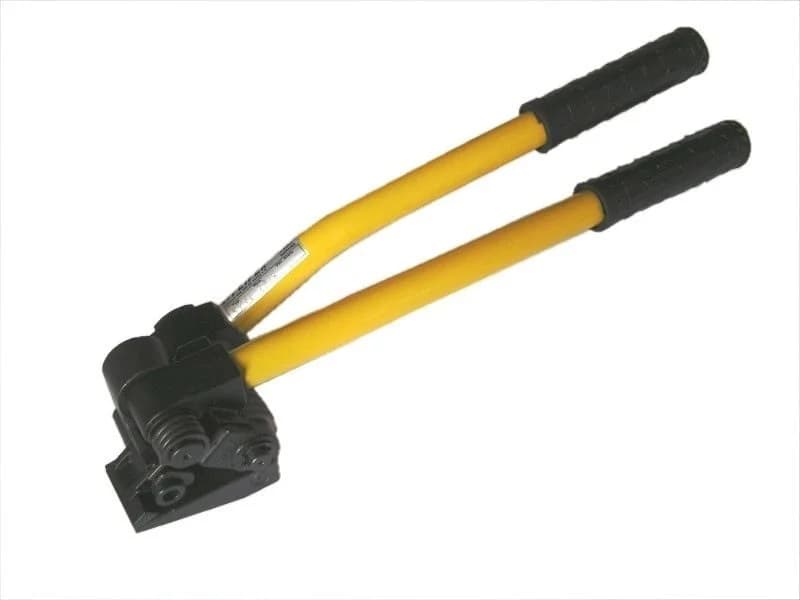

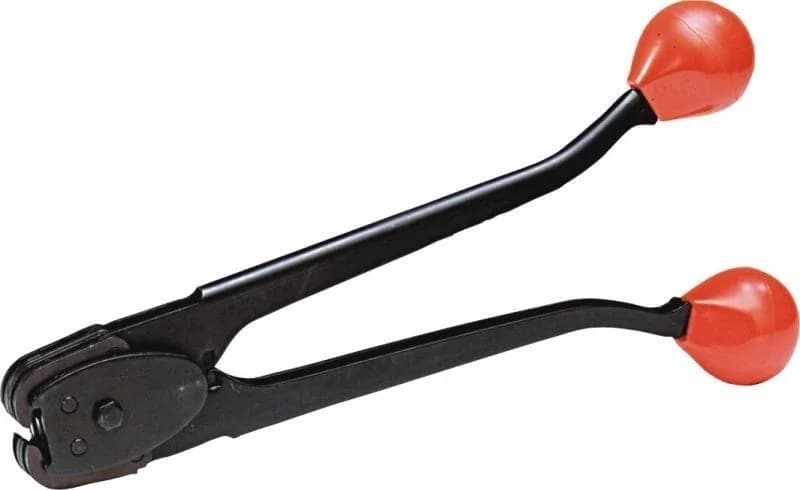

Strapping set NP-21 (tensioner) + UK-2 (crimping pliers) for taping with steel tape 19 or 32mm and thickness 0,8 - 1mm with clamp. This set is used for taping very heavy objects such as ingots, wood bundles, etc. The set also allows taping objects with a circular profile while achieving a joint strength of up to 15,000N. A similar set with the designation NP-11 + UK-1 is also available for tapes with a width of 10, 13, 16 or 19mm and a thickness of 0.4 - 0.5mm. Our unwinders are a suitable complement to these strapping machines. They prevent unwinding and deterioration of the tape reel, allow easy handling and reduce the risk of workplace accidents. To facilitate work with heavier tools, we recommend the use of balancers, which balance the weight of the suspended tool during work. The range of unwinders, cut-off pliers and suspension devices (balancers) can be found under accessories, other. crimping pliers UK - 2 in modifications UK - 2/19 and UK - 2/32 crimping pliers UK - 1 in modifications UK - 1/10, UK - 1/13, UK - 1/16 and UK - 1/19
Interested in this product? Contact us for a custom quote.
Technical parameters
| Description | NP - 21 tensioner | clamping pliers UK - 2 in modifications \n UK - 2/19 and UK - 2/32 \n | NP - 11 tensioner | \n clamping pliers UK - 1 in modifications \n UK - 1/10, UK - 1/13, UK - 1/16 and \n UK - 1/19 \n |
|---|---|---|---|---|
| coupling design | - | clamps type 207000, 207100, 208200, 207500, 208500, 209200 | - | clamps type 206200, 206300, 206500, 206400 |
| Tape width [mm] | 19 - 32 | 19 and 32 | 10 - 19 | 10, 13, 16 and 19 |
| Tape thickness [mm] | 0,8 - 1 | 0,8 - 1 | 0,4 - 0,6 | 0,4 - 0,6 |
| weight [kg] | 3,30 | 3,00 | 3,00 | 1,00 |
| dimensions d x w x h [mm] | 520 x 120 x 100 | 650 x 120 x 50 | 420 x 120 x 100 | 320 x 150 x 50 |
| recommended accessories | UK - 21, OP-28, KL-2 | NP - 21, OP-28, KL-2 | UK - 1, OP-5, KL-1, (OP-9, OP-7) | NP - 11, OP-5, KL-1, (OP-9, OP-7) |
Rozměry a varianty
| popis | provedení spoje | šíře pásky [mm] | tloušťka pásky [mm] | hmotnost [kg] | rozměry d x š x v [mm] | doporučené příslušenství |
|---|---|---|---|---|---|---|
| NP - 21 napínač | - | 19 - 32 | 0,8 - 1 | 3,30 | 520 x 120 x 100 | UK - 21, OP-28, KL-2 |
| uzavírací kleště UK - 2 v modifikacích UK - 2/19 a UK - 2/32 | sponami typu 207000, 207100, 208200, 207500, 208500, 209200 | 19 a 32 | 0,8 - 1 | 3,00 | 650 x 120 x 50 | NP - 21, OP-28, KL-2 |
| NP - 11 napínač | - | 10 - 19 | 0,4 - 0,6 | 3,00 | 420 x 120 x 100 | UK - 1, OP-5, KL-1, (OP-9, OP-7) |
| uzavírací kleště UK - 1 v modifikacích UK - 1/10, UK - 1/13, UK - 1/16 a UK - 1/19 | sponami typu 206200, 206300, 206500, 206400 | 10, 13, 16 a 19 | 0,4 - 0,6 | 1,00 | 320 x 150 x 50 | NP - 11, OP-5, KL-1, (OP-9, OP-7) |
