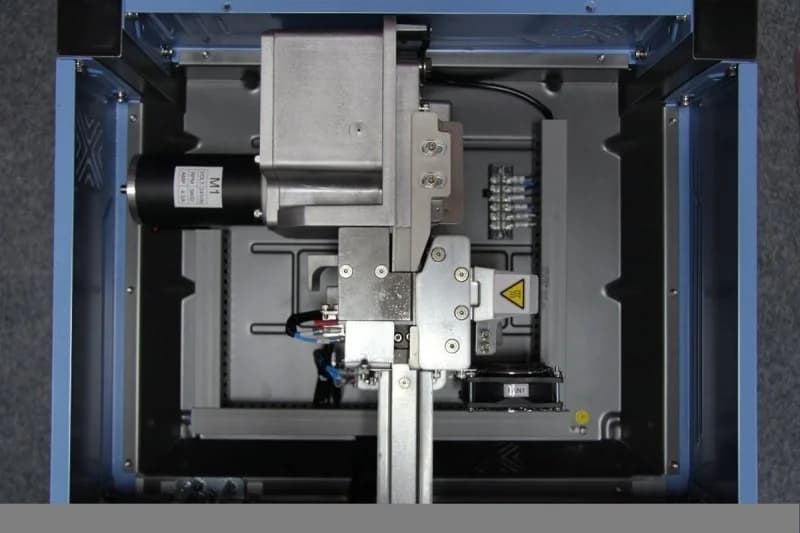

Semi-automatic strapping machine TP-303 MINIPACK for PP straps

The semi-automatic tape machine TP-303 MINIPACK is designed for taping e.g. printed matter, cardboard, textiles, banknotes but also objects such as furniture, it can also be used for taping circular objects e.g. hoses, cables, smaller tyres or bicycle tyres etc. - compact, simple and trouble-free mechanics - simple operation and maintenance of the machine - electromagnetic clutch for stepping cycles - strapping time per strap 2 seconds - extremely low maintenance requirements - electronically adjustable tightening force - adjustable motor running time and weld cooling time - innovative machine electronics - modern design The machine works with PP tape widths from 5 to 15.5 mm on a 200 mm inner diameter cavity roll. The main advantages of this strapping machine include: - compact, simple and trouble-free mechanics - easy operation and maintenance of the machine - electromagnetic clutch for stepping cycles - strapping time per strapping 2 seconds - extremely low maintenance requirements - electronically adjustable tightening force - adjustable motor running time and weld cooling time - innovative machine electronics - modern design

Interested in this product? Contact us for a custom quote.

Technical parameters

ParameterValue
druh vázací páskyPP
šíře pásky5,0-15,5 mm
tloušťka pásky0,45-0,70 mm
délka stolu784 mm
šíře stolu546 mm
výška stroje780 mm
napájecí napětí230V/50Hz
instalovaný příkon0,35kW
max.utahovací síla500 N
hmotnost46 kg
