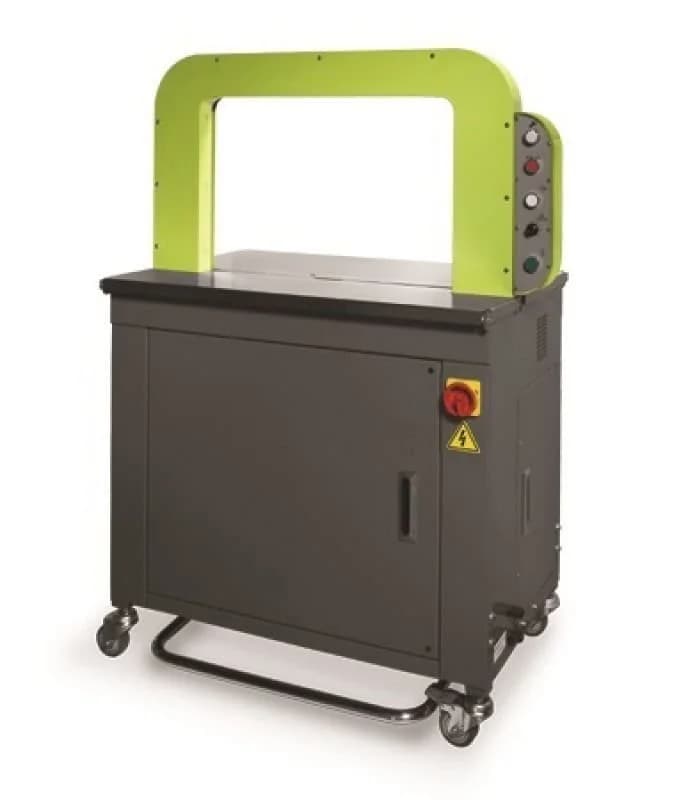

Automatic strapping machine TP-125 SWIFT - for PP strap

It is designed for taping (with PP tape) e.g. cartons, textiles, etc. The machine is suitable for plants with high packaging capacity (up to 50 wraps per minute!) and can operate in semi-automatic or automatic mode. The machine has an advanced system of tape introduction and loading, automatic introduction of tape into the machine, automatic ejection of unintended or erroneous strapping, automatic opening of the bypasser in case of malfunction, minimum external dimensions. The unwinder is built inside the machine. Other advantages are the possibility of ordering with a different sized rewinder, very low operating consumption and high operator safety.

Interested in this product? Contact us for a custom quote.

Technical parameters

ParameterValue
product designation700 010487
supply voltage230V/50Hz
installed power input0.5 kW
binding tape - materialpolypropylene
binding tape width5,5 (5-6) mm
binding tape thickness0,35 - 0,5 mm
mass176 kg
outer diameter of the winding cavity200 mm
max. power50 (times/min.)
width of the border600 mm
height of the obvader400 mm
