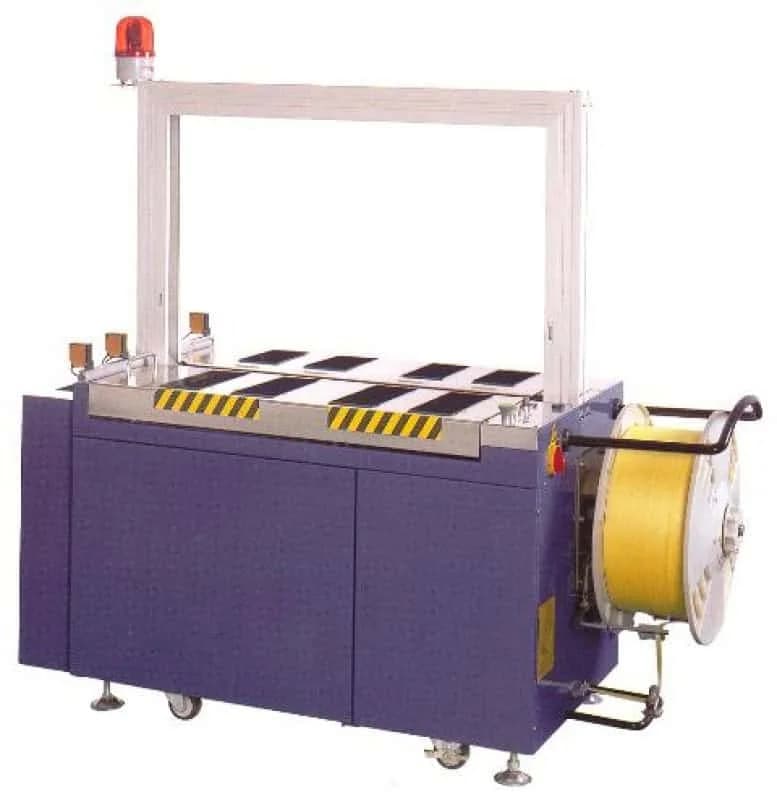

Automatic inline strapping machine TP-107B FORTE AUTO - for PP strap
Automatic inline strapping machine TP-107B FORTE AUTO - for PP strap
It is designed for taping (with PP tape) e.g. cartons, shipping boxes, etc. The machine is equipped with motor-driven conveyor belts. It is characterized by high speed of taping, easy operation and reliability. The machine can operate in both manual and automatic mode. The machine is equipped with a programmable control unit, which allows to use its own error and service diagnostics. The machine operates with tape widths of 8 to 15 mm (depending on modification) on a 200 mm diameter reel. The tightening force is adjustable from 10 to 70 kg. In this version it is designed for tape width 8-15 mm.
Interested in this product? Contact us for a custom quote.
Technical parameters
| Parameter | Value |
|---|---|
| product designation | 700 007859 |
| supply voltage | 230V/50Hz |
| binding tape - material | polypropylene |
| binding tape width | 8 - 15 mm |
| binding tape thickness | 0,4 - 0,65 mm |
| mass | 280 kg |
| tightening force | 100-700 N |
| outer diameter of the winding cavity | 200 mm |
| max. power | 26 (cycles/min.) |
| height of work table (mm) | 820 mm |
| width of the border | 850 mm |
| height of the obvader | 600 mm |
