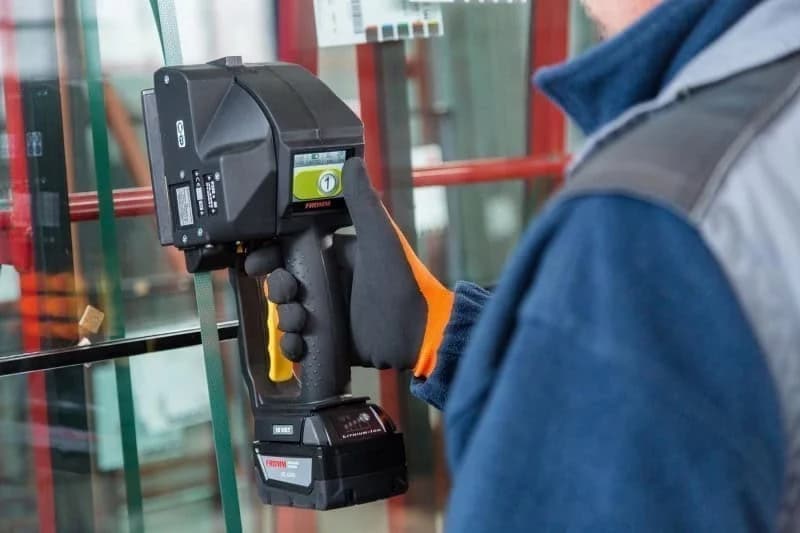

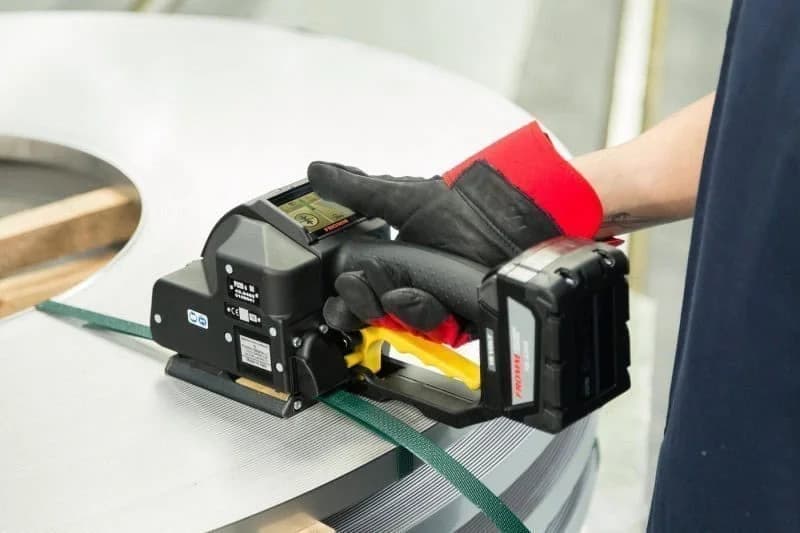

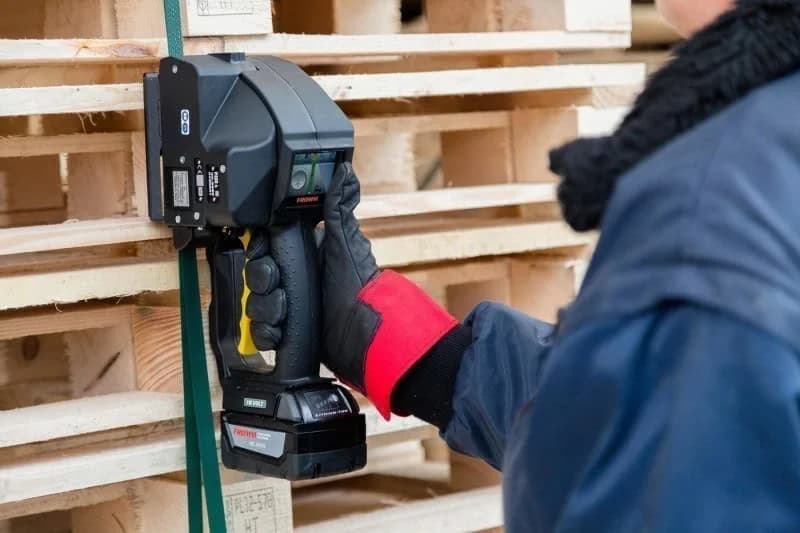

FROMM P328 Smart - Battery Strapping Tool (12-16mm)

The P328S is a robust, intelligent digital strapping machine with a full-color display. The straps are fed simultaneously from the left side, with strap guides located at the rear and front of the strapping tool. Both the tension force and the sealing time can be easily adjusted on the FULL-COLOR DISPLAY. The cooling time is dependent on the sealing time =˃ a strong, effective bond. The angled base plate allows for very easy and smooth removal of the strapping—particularly advantageous when strapping items with small or round surfaces. The P328S features a well-balanced design; its plastic parts are made of reinforced polymers, and its 5.0 Ah Li-Ion battery incorporates state-of-the-art technology. The battery includes a charge indicator. ADVANTAGES:  Alerts when needed regarding basic strapping information, updates, and service (optional, wireless output)  Intelligent, multifunctional, and easy-to-use color touchscreen that prevents water and dust from entering the device  3-in-1, one-handed tool with easy selection of manual, semi-automatic, or automatic operation  Set and lock the correct tension, speed, and sealing time with the touch of a finger  Tested to meet or exceed FROMM’s high quality standards and customer expectations  Preset strap types with 10 configurable strapping modes help ensure the tool is set up correctly  Durable design, easily recyclable, with dual “AlwaysGood” strap guides  Easy tape feeding  Well-balanced tool with extra finger protection for safe and comfortable working conditions  Sturdy battery holder that accommodates a 5.0 Ah or even up to a 9.0 Ah battery  Brushless motor with motor temperature monitoring system. An optional motor cooling fan is available for extreme environments  Easy maintenance; dust particles can be removed from the tape using compressed air

Interested in this product? Contact us for a custom quote.

Technical parameters

ParameterValue
Recommended Types of StrapsPolyester (PET) and Polypropylene (PP), smooth and embossed
Tape Dimensions12.0–16.0 × 0.40–1.05 mm
Weight4.3 kg (including a 5.0 Ah battery)
Size of the watch with batteryL 351 x W 134 x H 143 mm
Weld TypeFriction weld / joint strength is approximately 75%
Tensioning Speed49–174 mm/s
Tensile strength250–2,600 N—continuously adjustable, depending on the type of tape
RegulationsEuropean Safety Standard EN 415-8
BatteryLi-Ion 18 VDC / 5.0 Ah or 9.0 Ah
