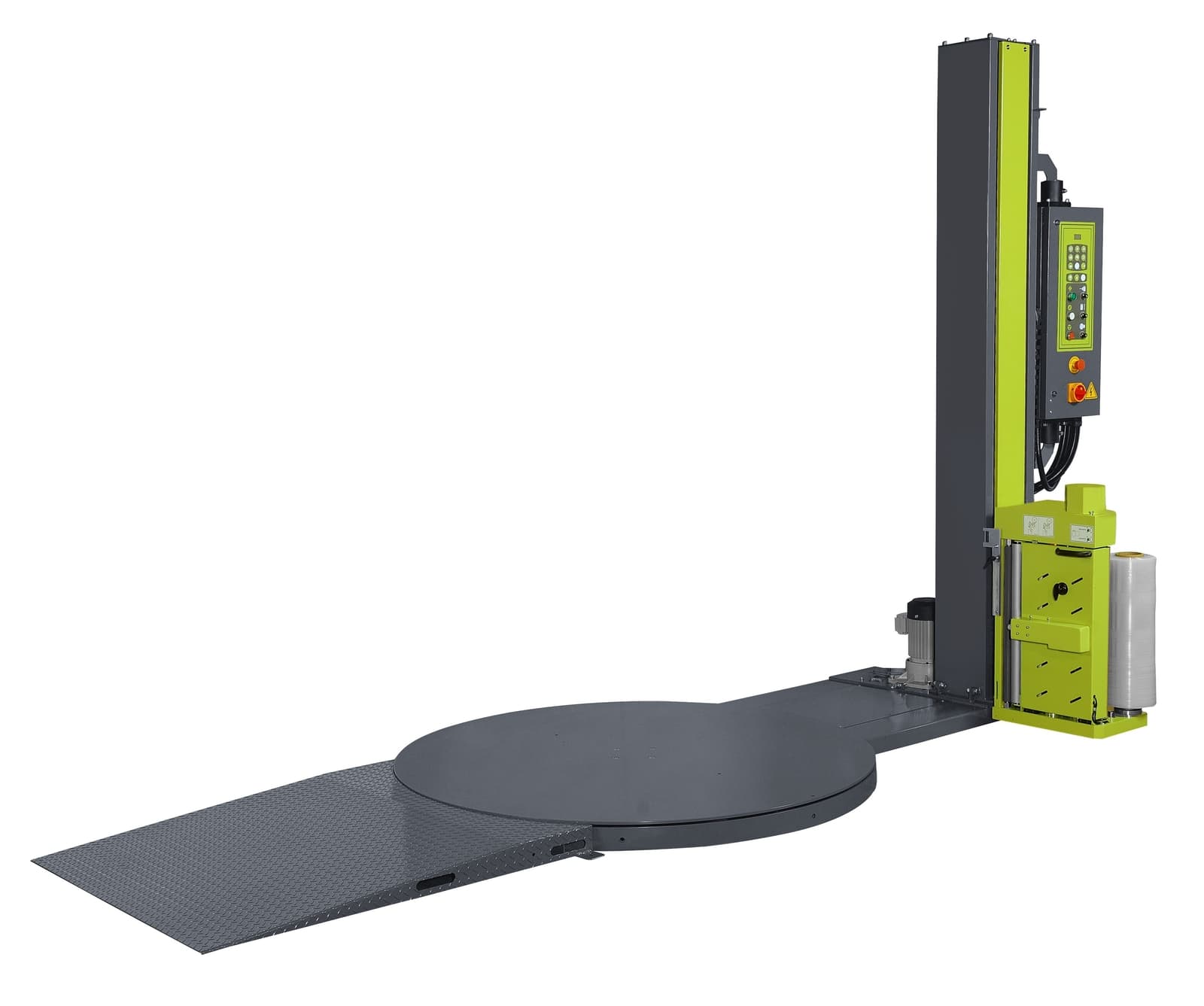

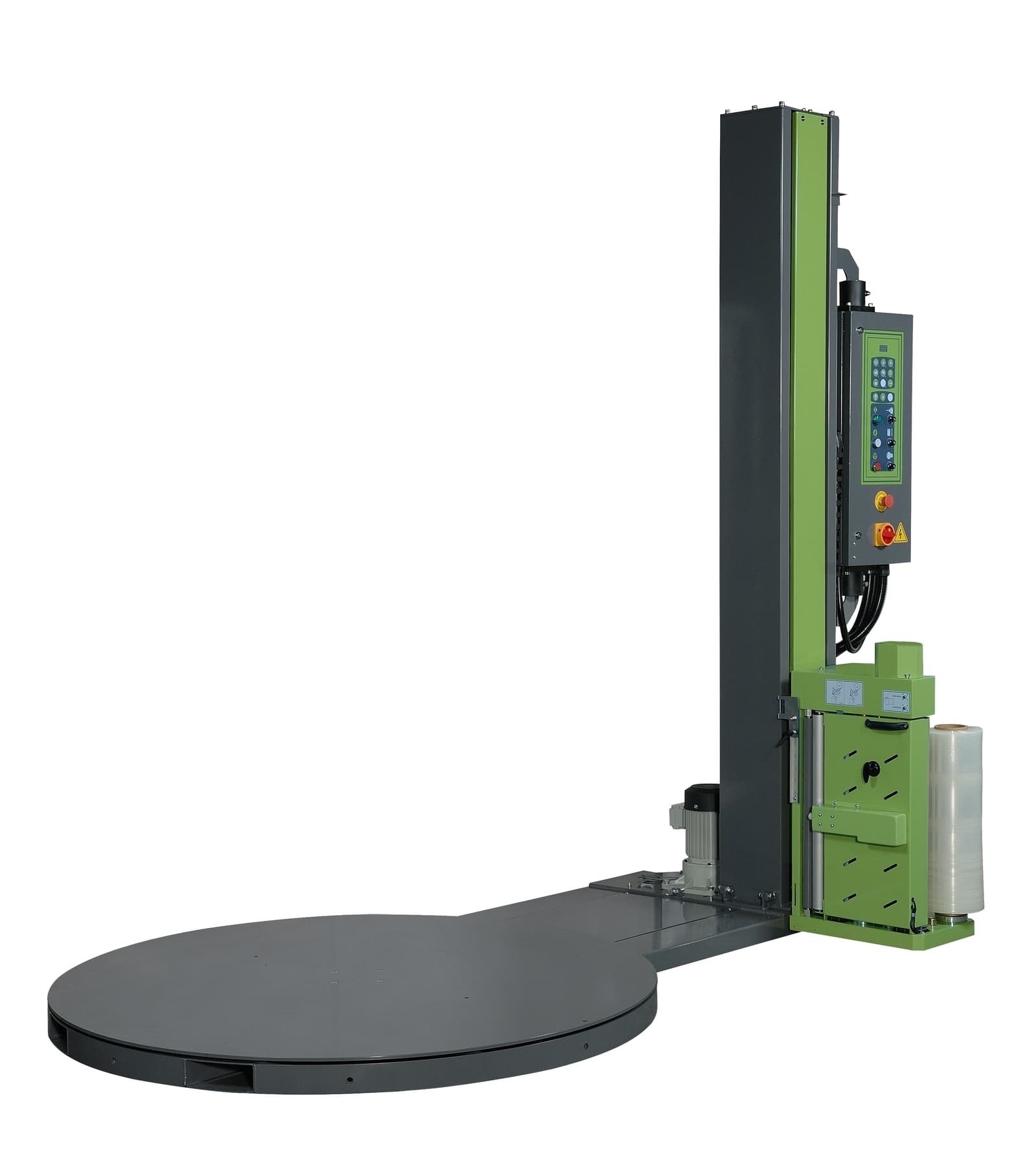

Wrapping machine EXP-108

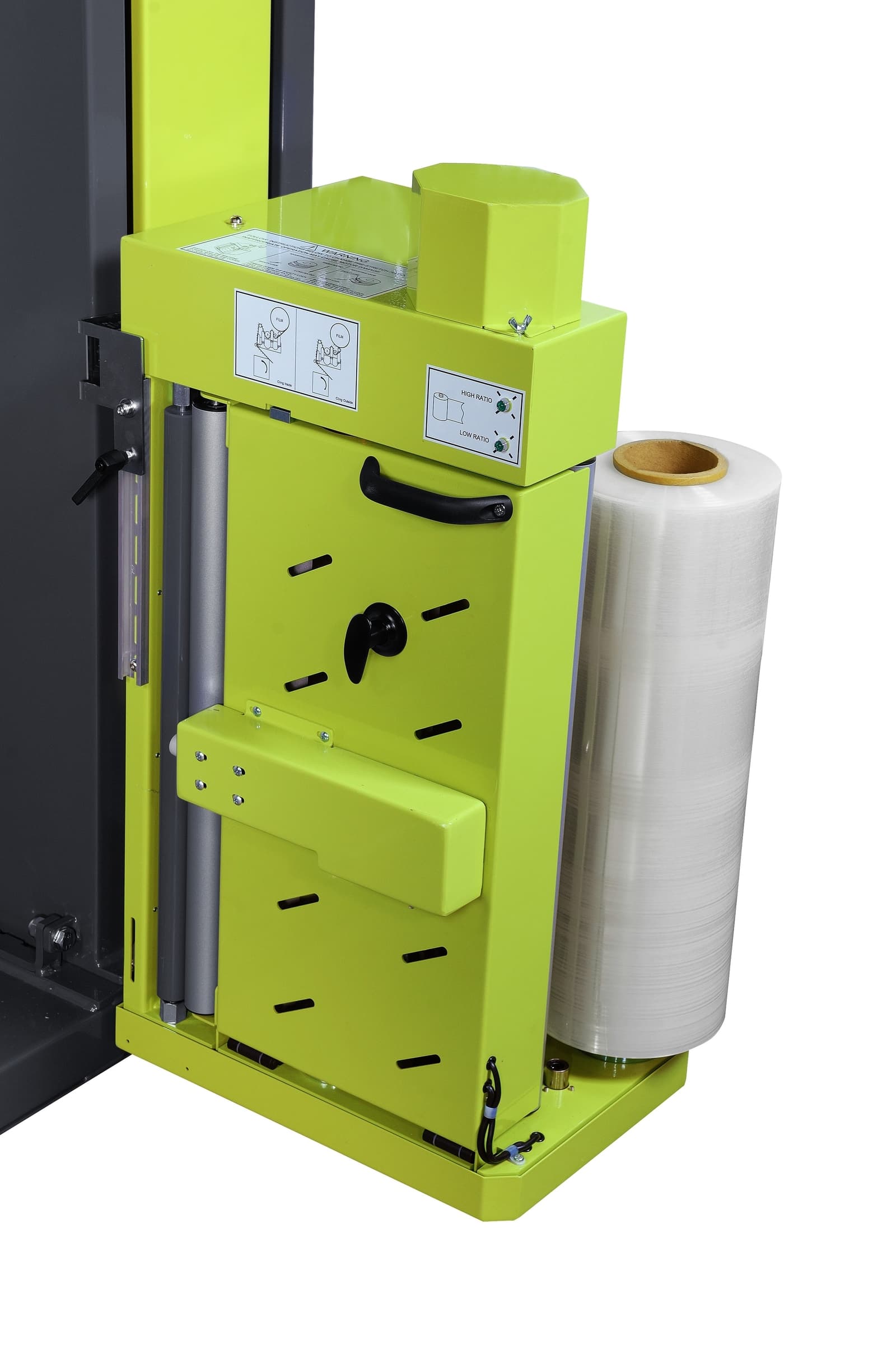

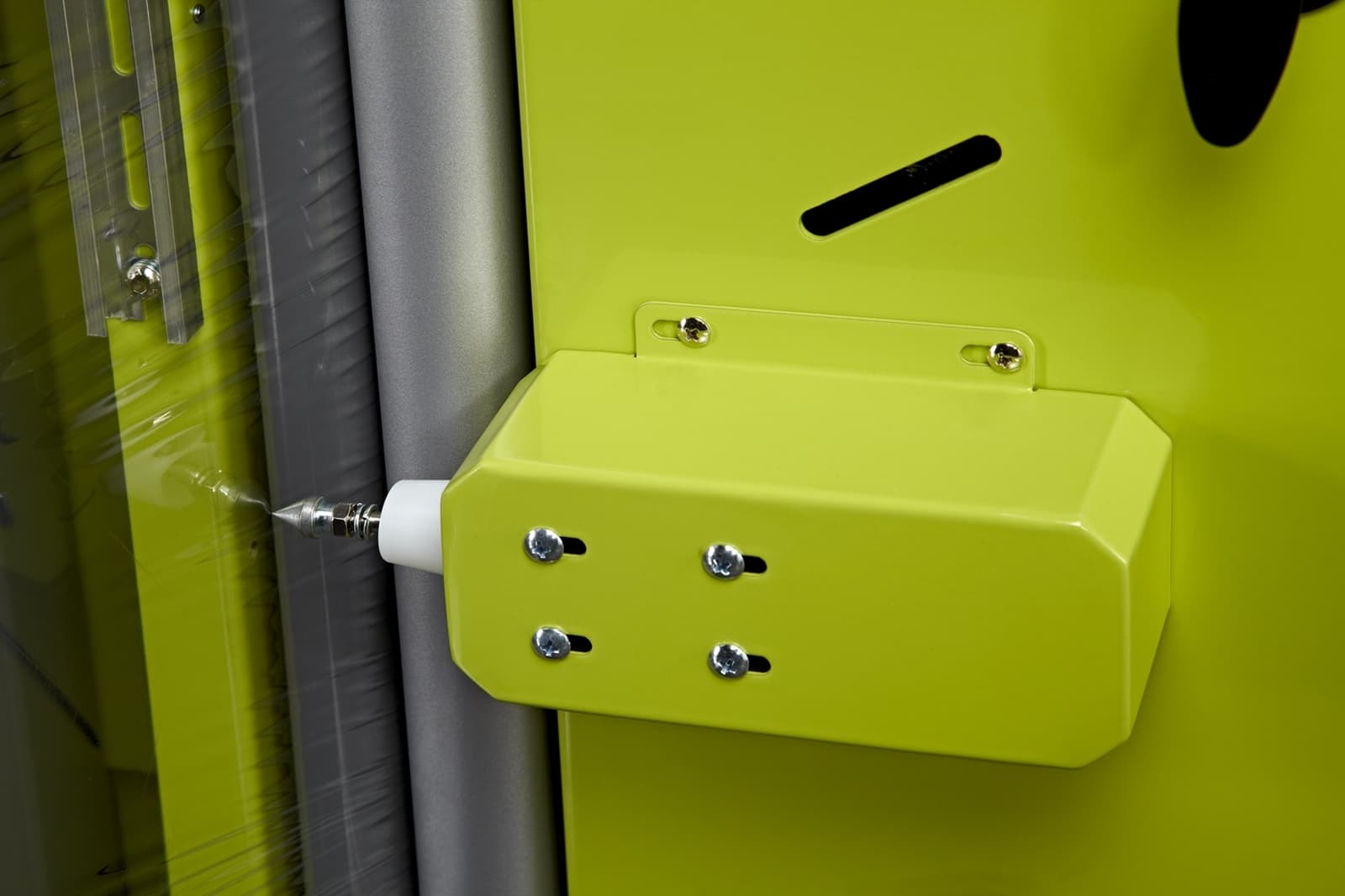

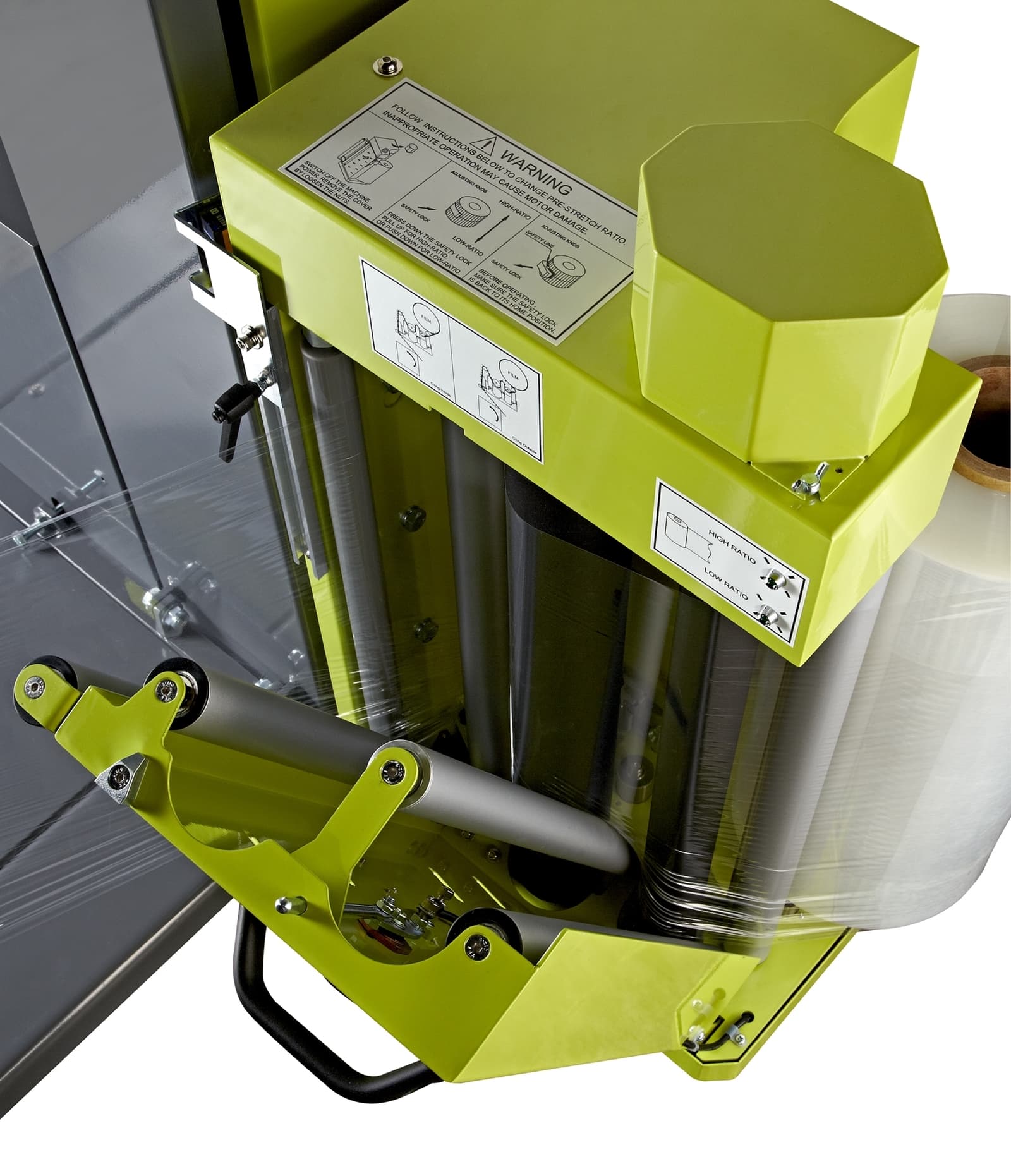

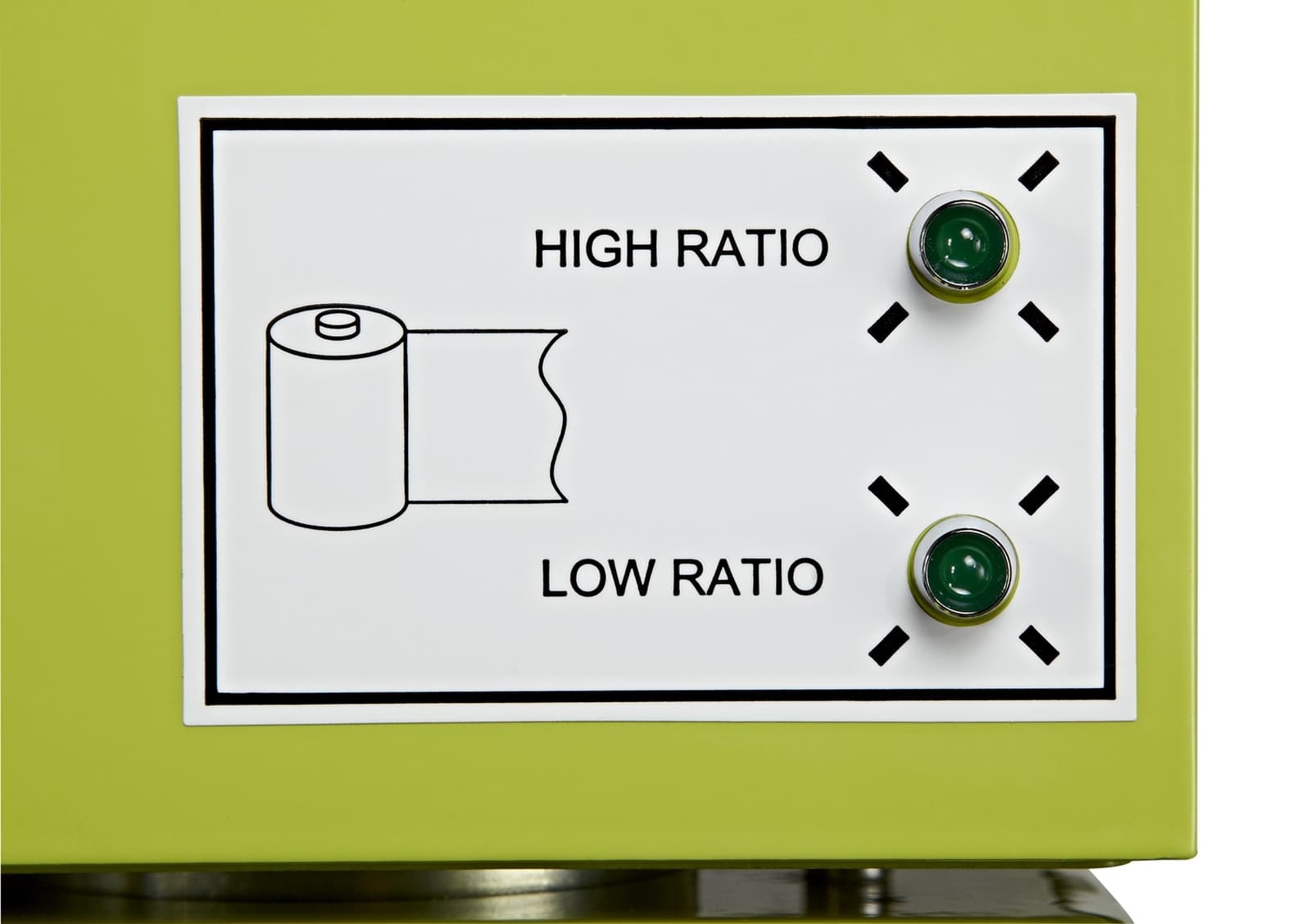

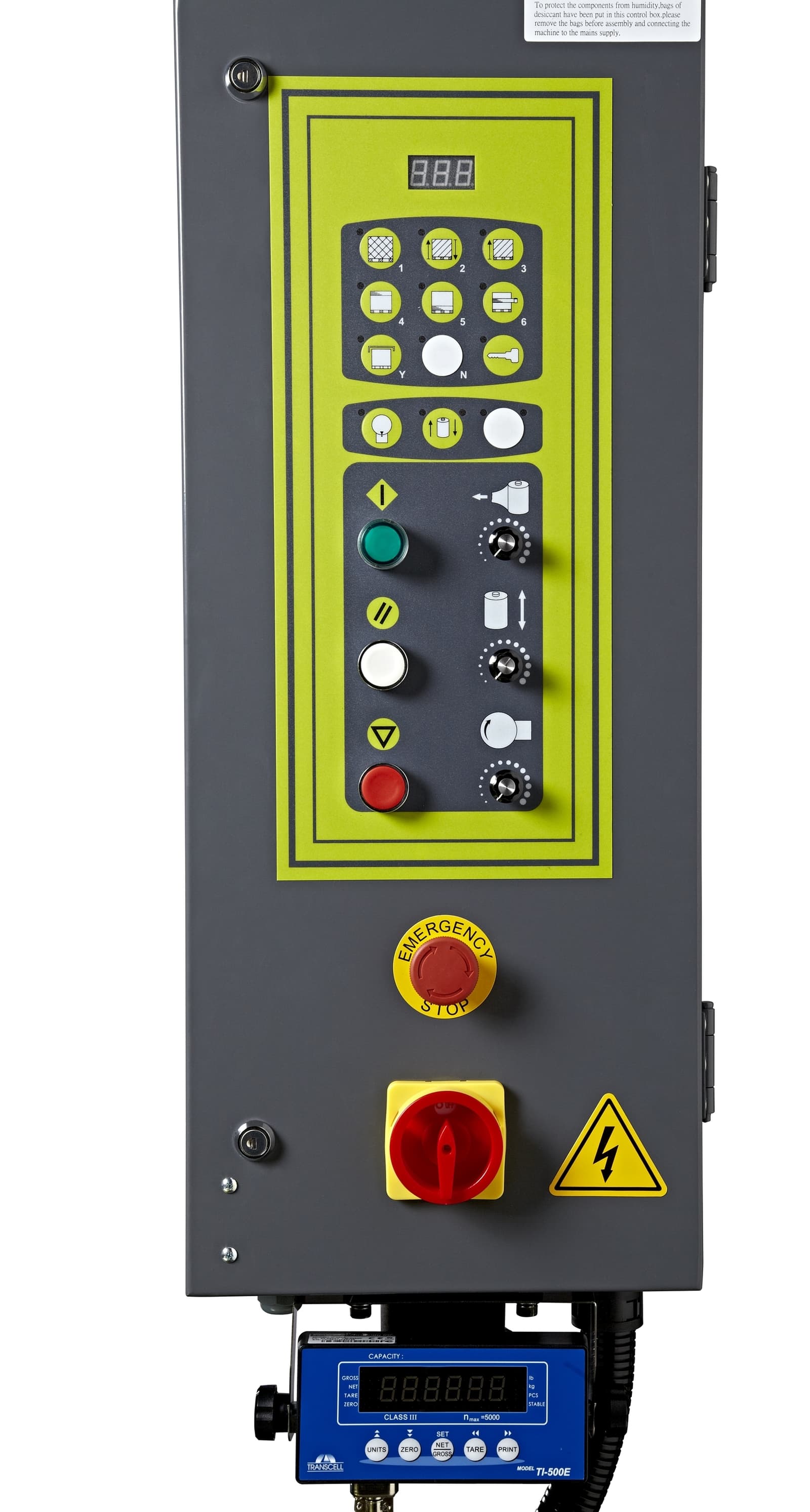

Automatic wrapping (wrapping) machine EXP-108 for wrapping pallets, suitable for operations with medium to large packaging capacity (up to 30 pallets / hour) The machine is equipped with 3 configurable programs and motorized film tensioning with optional tensioning - 230% or 300% (stretching 1 m of film up to 4 m). Other machine features include: automatic film cut-off at the end of the wrapping cycle built-in service diagnostics precise orientation of the turntable stop slow start and stop of the turntable optical pallet height sensing infinitely variable speed control of the turntable and film carriage travel infinitely variable tightening force speed control programming and communication with the control unit via mini-dial and keyboard

Interested in this product? Contact us for a custom quote.

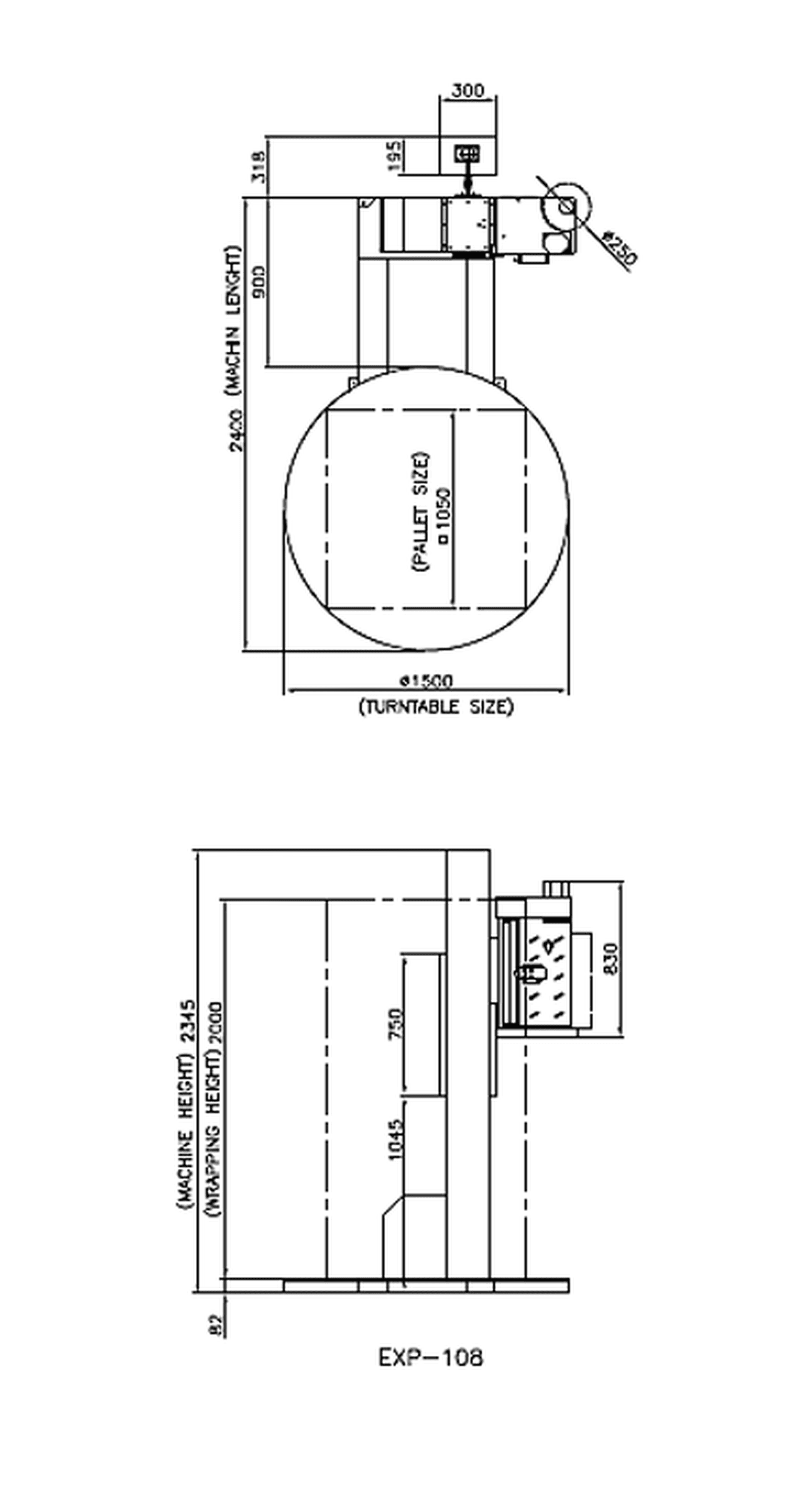

Technical parameters

ParameterValue
product designation700 008321
packaging material - foilmechanical stretch
max. pallet size (l x w)1200 x 800, 1050 x 1050 mm
max. pallet height2000 mm
max. pallet weight1650 kg
turntable speed12 rpm.
turntable height82 mm
turntable diameter1500 mm
supply voltage230 V / 50 Hz
installed power input1.2 kW
machine height2345 mm
machine length2400 mm
machine width1500 mm
mass435 kg
