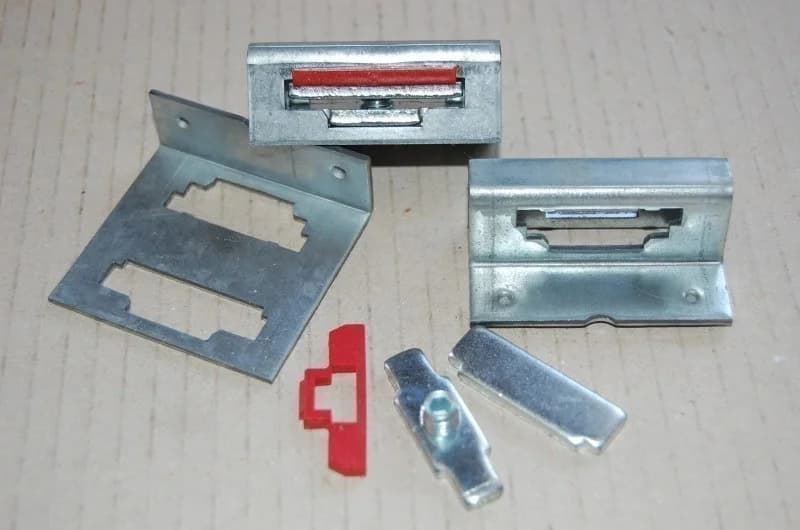

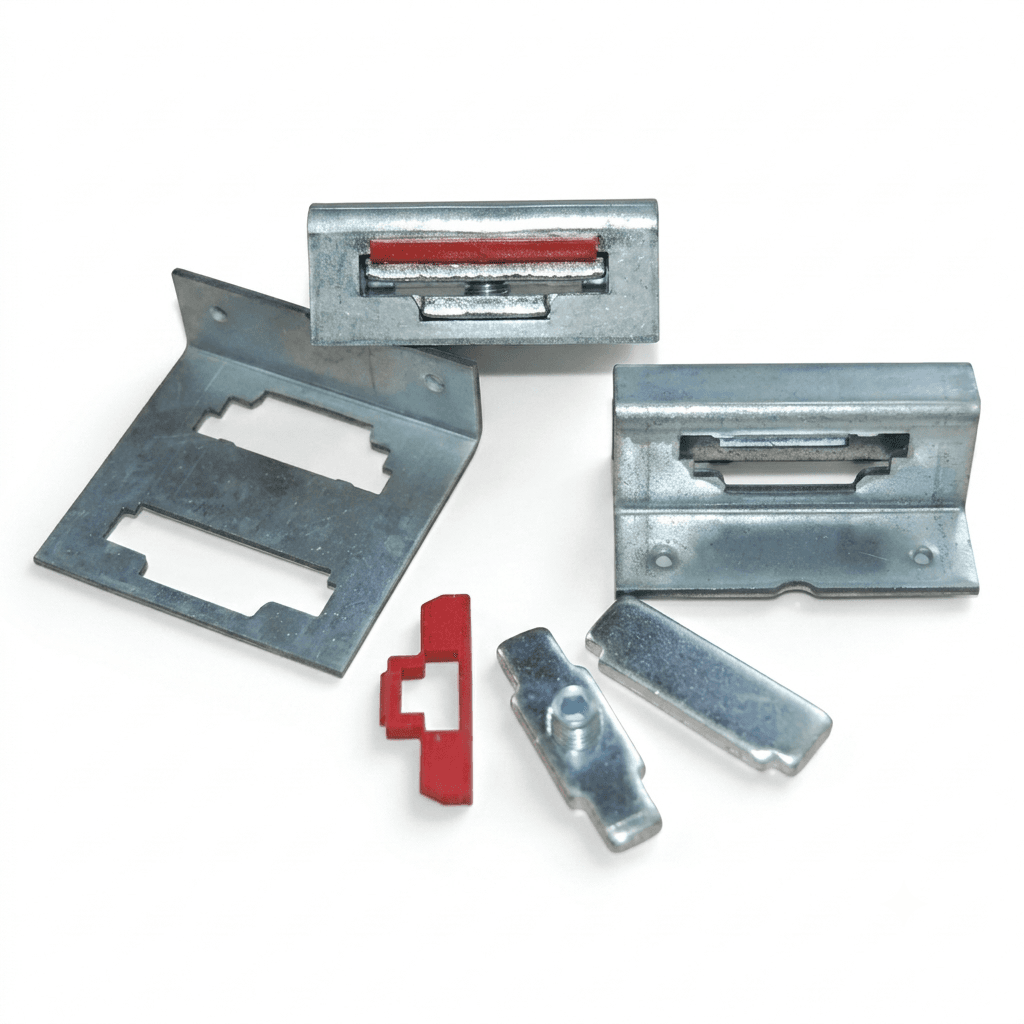

Hinge pocket 3 001 00
Hinge pocket 3 001 00

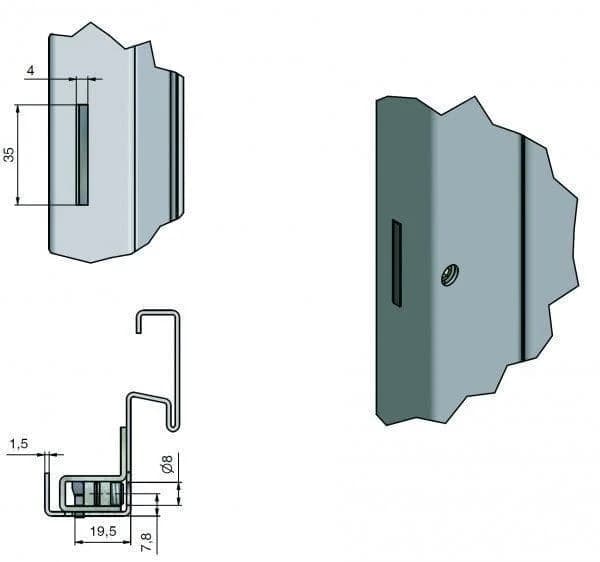

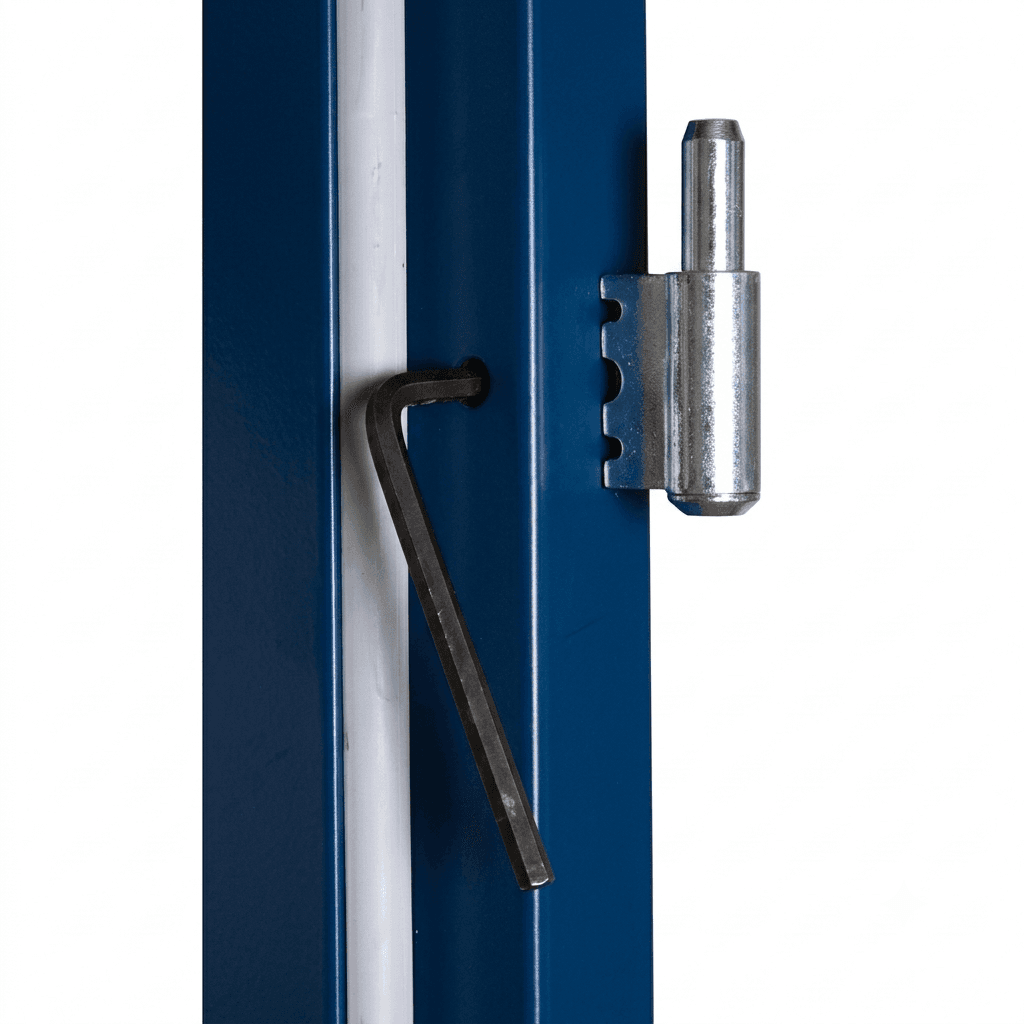

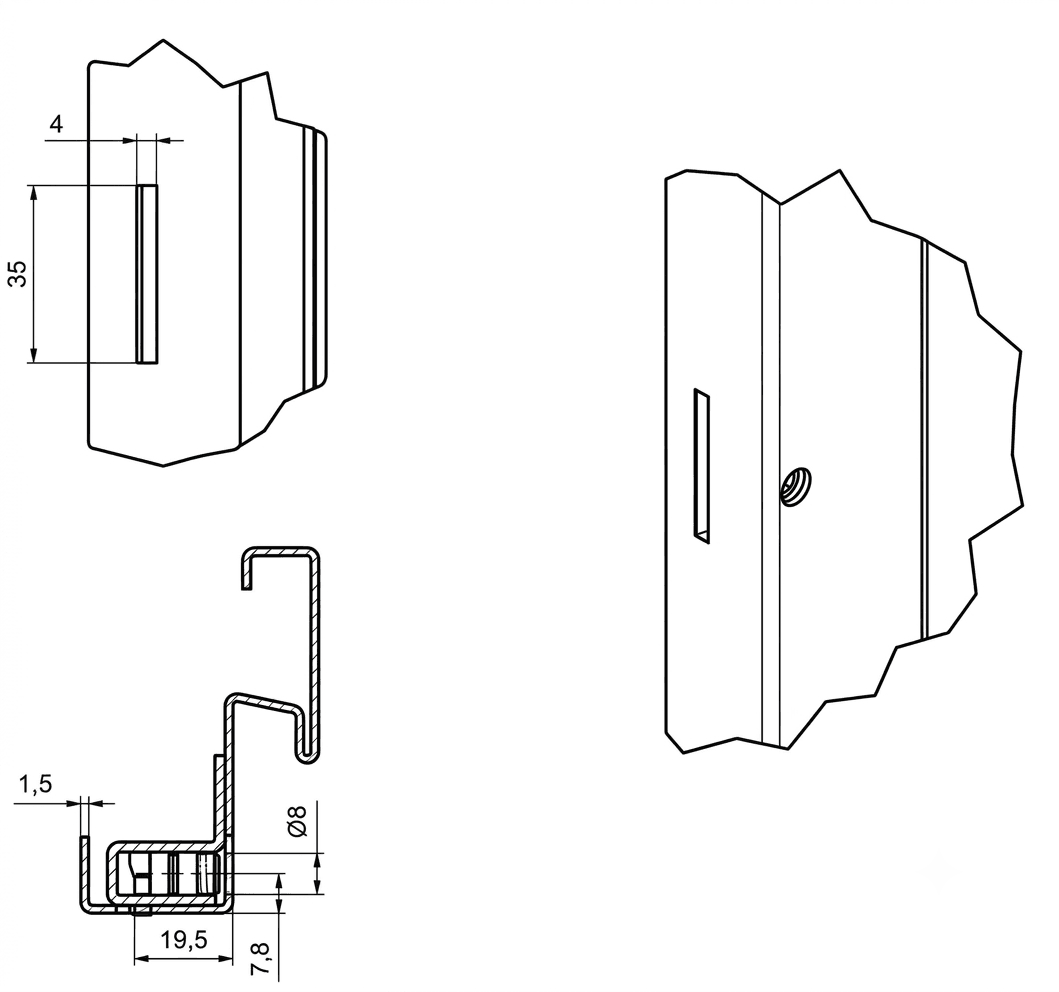

For mounting hinge V8100 in steel door frames. Zinc-plated, custom order in stainless steel V4A (AISI 316). Load capacity 40 kg.
Interested in this product? Contact us for a custom quote.
Technical parameters
| Parameter | Value |
|---|---|
| pocket width | 30,5 mm |
| pocket length | 55 mm |
| material thickness | 2 mm |
| weight | 0,072 kg |
