Batten Holder 3 061 00
Batten Holder 3 061 00
Allows effective adjustment of the correct height of a ridge or hip batten. An additional advantage is better ventilation of the ridge than when using two battens on top of each other. Manufactured for bearing strip widths of 40, 50 and 60 mm and in lengths as specified by the customer. The nail is press-fitted with the bridge. Surface treatments: electro-galvanised or hot-dip galvanised.
Interested in this product? Contact us for a custom quote.

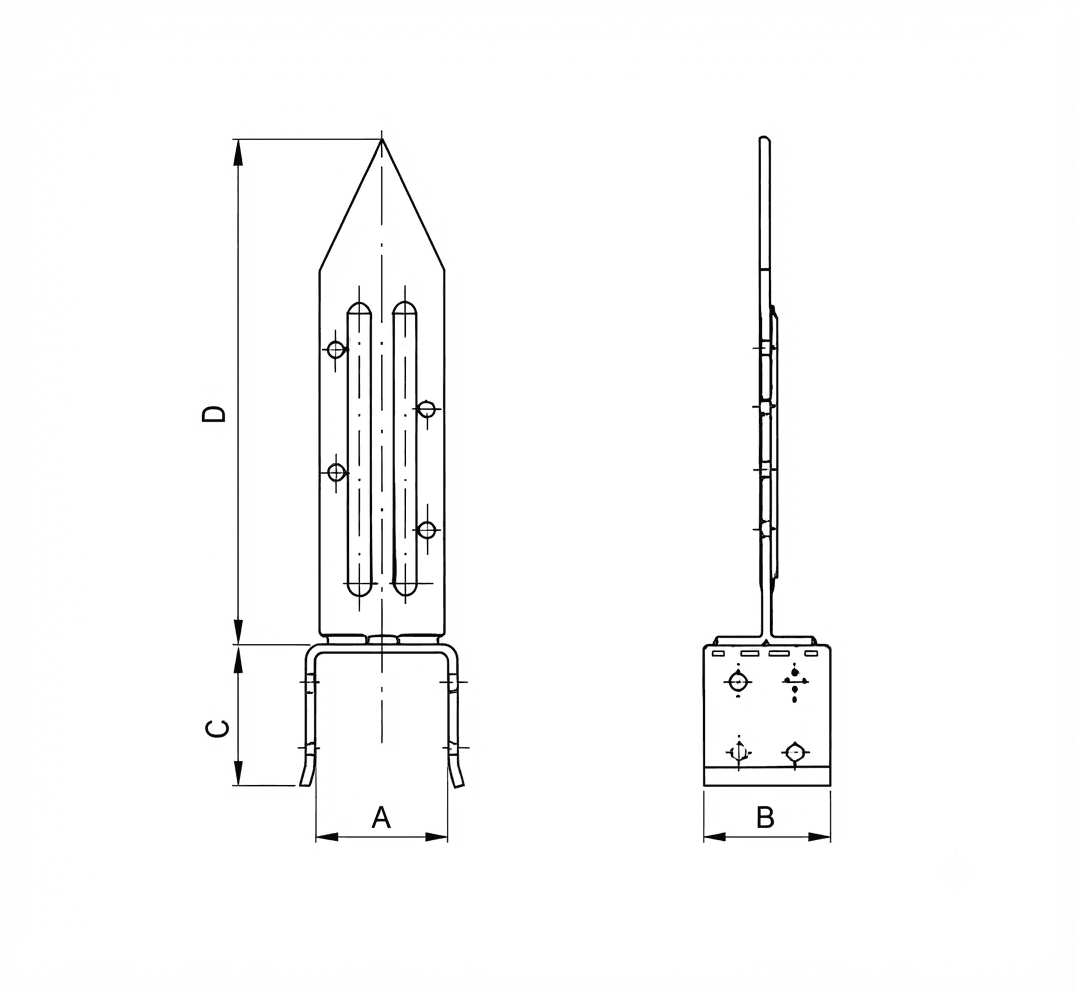

Technical parameters
| Parameter | Value |
|---|---|
| order number | 3 061 00 |
| width of buckle | 32 |
| length of buckle | 30 |
| material thickness | 37 |
| D | 141 |
| strength of material | 2mm |
| nail length | 141mm |
