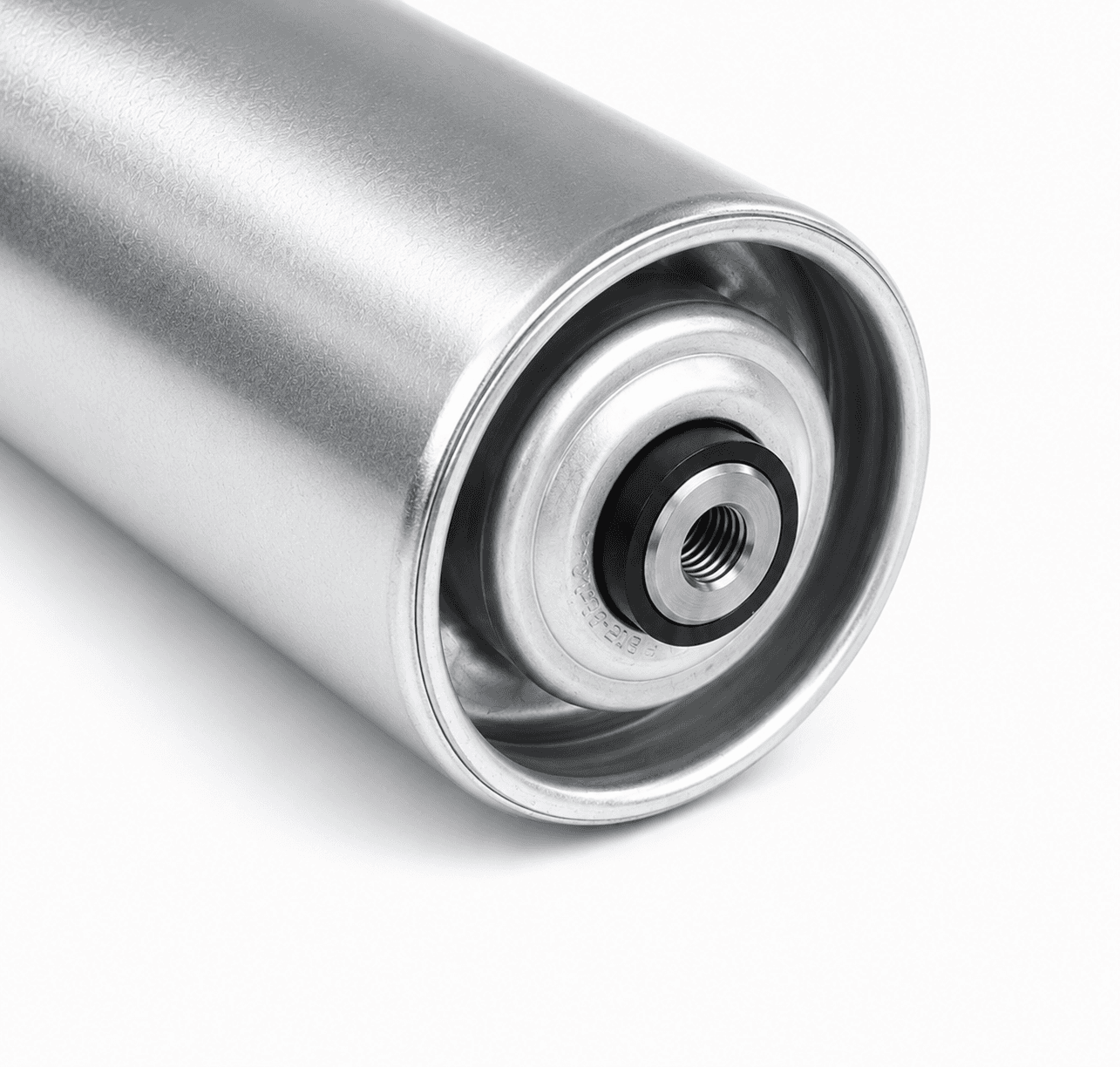

Roller Type 5, Ø80 Steel, Shaft 20 mm / Internal M10, L=300 mm, 250 kg
Roller Type 5, Ø80 Steel, Shaft 20 mm / Internal M10, L=300 mm, 250 kg
Heavy-duty steel conveyor roller Type 5 with a diameter of 80 mm, shaft diameter of 20 mm with internal M10 thread, length of 300 mm, and load capacity of 250 kg. Designed for demanding industrial conveyor applications handling very heavy loads.
Interested in this product? Contact us for a custom quote.
Technical parameters
| Parameter | Value |
|---|---|
| product designation | 500 009901 |
| carrying capacity | 250 kg |
| material of the roller casing | Steel |
| roller diameter | 80 mm |
| shaft diameter | 20 mm |
| Thread | M10 |
| length of the jacket (l) | 300 mm |
| clamping length of the roller | 305 mm |
